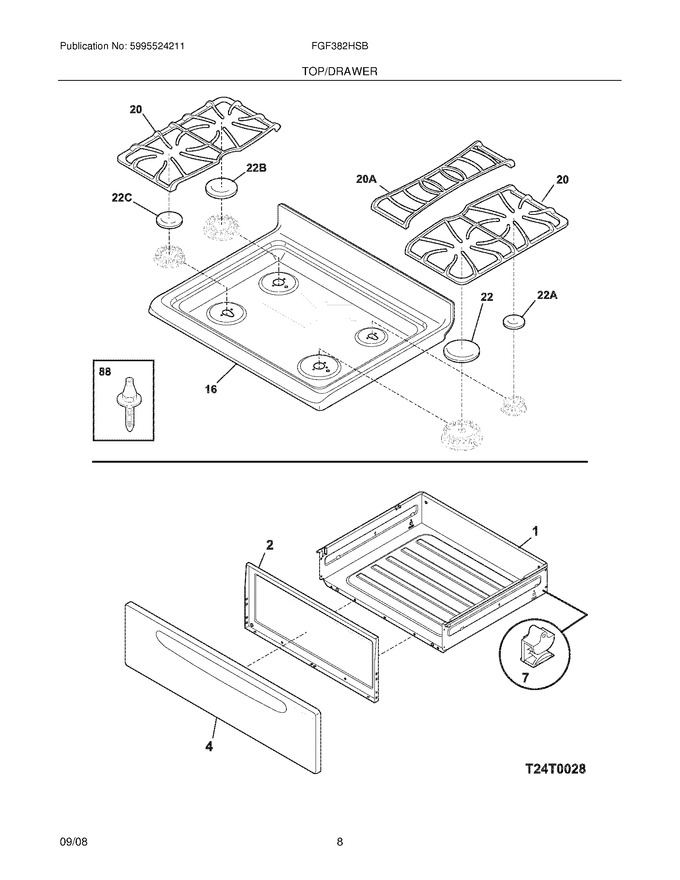

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527988		Liner,drawer   (Replaces: 316403200)			Immediately	$ 26.54
4	316403401		Panel,drawer ,white ,front				$ 92.51
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316411212		Maintop,white				$ 215.20
20	316424605		Grate,gray ,(2)				$ 275.47
22	316271901		Cap,17k Burner ,gray				$ 113.72
88	316099500		Pin,guide ,(2)				$ 6.53
20A	316424705		Grate,center ,gray				$ 180.97
22A	316206601		Cap,5k Burner ,gray				$ 104.11
22B	316213601		Cap,12k Burner ,gray				$ 138.66
22C	316213501		Cap,9.5k Burner ,gray				$ 104.05
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
