SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body

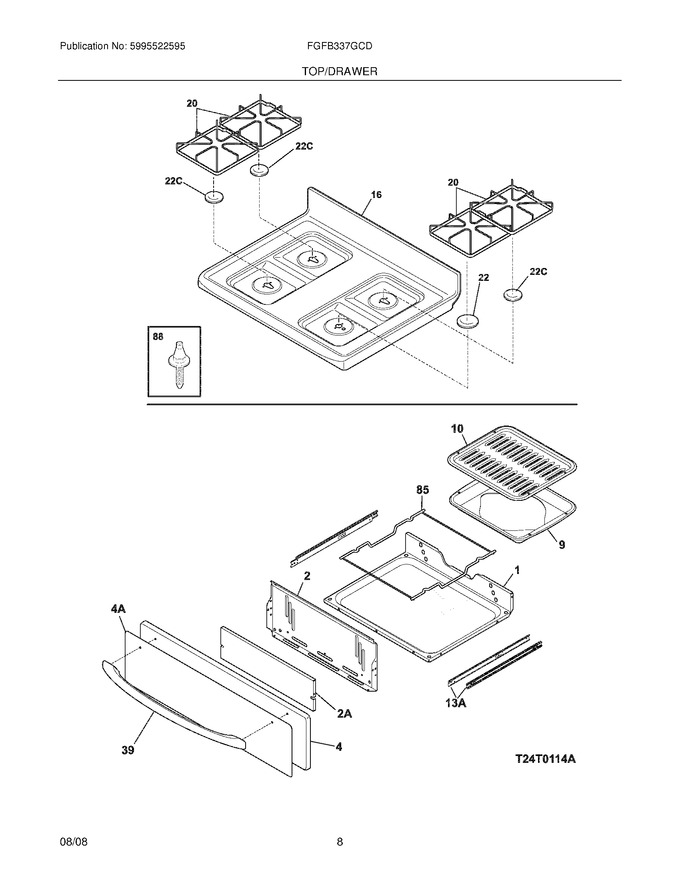

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage,low Broil				$ 232.57
2	316236401		Liner,low Broil				$ 119.96
4	316231226		Panel,drawer ,black		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
16	316202331		Main Top,black				$ 372.12
20	316463200		Grate,gloss Black ,(4)				$ 129.00
22	316213600		Cap,12k Burner ,black				$ 130.08
39	316270200		Handle,door ,black				$ 136.40
85	316115600		Rack-low Broil				$ 105.47
88	316099500		Pin,guide ,(2)				$ 6.53
13A	316534200		Glide-low Broil, Inner				$ 42.75
22C	316213500		Cap,9.5k Burner ,black				$ 43.23
2A	316541500		Shield,broiler				$ 61.37
4A	316444802		Overlay,drawer Panel ,stainless		Appelez-nous	-
NI	316021120		Screw,shoulder Head ,8-18 X 5/8 ,(2) ,square Drive				$ 13.28
NI	316437500		Screw,handle Mtg. ,10 14 X .4 Trus ,(2)				$ 13.39
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
