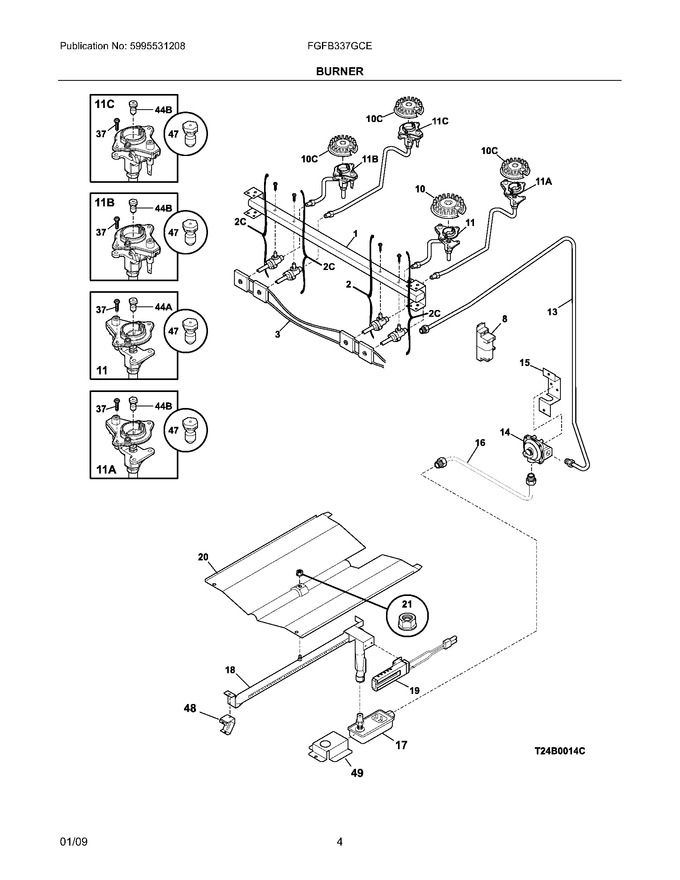

01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 316536001 | Valve-top Burner,12k |
|
$ 83.42 | |||||
| 10 | 316438000 | Burner,sealed ,12k |
|
$ 67.81 | |||||
| 11 | 316536608 | Ignitor/orifice Assy.,top Burner ,right Front,12k ,w/holder ,tube |
|
$ 88.17 | |||||
| 13 | 316545800 | Tube,3/8 ,aluminum , Rgltr To Manf ,with Fittings |
|
- | |||||
| 15 | 316091600 | Bracket-regulator |
|
$ 73.56 | |||||
| 20 | 316496001 | Baffle,oven Burner |
|
$ 78.33 | |||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 37 | 316240600 | Screw,assy Mtg ,(8) ,ignitor/orifice |
|
Immediately | $ 12.13 | ||||
| 47 | GRLP3 | Lp Conversion Kit,w/instructions |
|
$ 57.11 | |||||
| 48 | 3018603 | Bracket,support ,oven Burner |
|
- | |||||
| 49 | 316416300 | Bracket,safety Valve |
|
- | |||||
| 11A | 316536600 | Ignitor/orifice Assy.,top Burner ,right Rear,9.5k ,w/holder ,tube (Replaces: 316536601) |
|
$ 124.27 | |||||
| 11B | 316536602 | Ignitor/orifice Assy.,top Burner ,left Front,9.5k ,w/holder ,tube |
|
$ 132.62 | |||||
| 11C | 316536600 | Ignitor/orifice Assy.,top Burner ,left Rear,9.5k ,w/holder ,tube |
|
$ 124.27 | |||||
| 44A | 316527502 | Orifice,top Burner ,12k |
|
$ 22.68 | |||||
| 44B | 316527500 | Orifice,top Burner ,9.5k |
|
$ 21.40 | |||||
| F1 | 316446800 | Pipe,manifold |
|
- | |||||
| F10C | 316558300 | Burner,sealed ,9.5k (Replaces: 316527400) |
|
Immediately | $ 52.45 | ||||
| F14 | 5304521339 | Regulator,pressure (Replaces: 316091706) |
|
Immediately | $ 105.42 | ||||
| F16 | 316065006 | Tube-valve To Rgltr,3/8 (Replaces: 316436500) |
|
$ 122.09 | |||||
| F17 | 3203459 | Valve-safety |
|
$ 303.64 | |||||
| F18 | 316114300 | Burner,oven |
|
$ 169.88 | |||||
| F19 | 5304509706 | Ignitor,oven Kit ,w/nut & Instr (Replaces: 316489402) |
|
Immediately | $ 189.59 | ||||
| F2C | 316536000 | Valve-top Burner,9.5k |
|
Immediately | $ 72.05 | ||||
| F3 | 316219016 | Wiring Harness,w/igntr Switch |
|
$ 91.58 | |||||
| F8 | 5304505695 | Module,spark (Replaces: 316135702) |
|
Immediately | $ 68.16 | ||||
| FNI | 316253700 | Wiring Harness,ignitor Module |
|
$ 139.28 | |||||
| NI | 316248105 | Instructions,lp Kit |
|
- | |||||
| NI | 316529700 | Screw,burner Head ,mtg. ,(8) |
|
$ 10.76 | |||||
| NI | 5303271648 | Screw,wafer Hd Sq Dr ,8-18ab X 0.5 |
|
Immediately | $ 13.46 | ||||
| NI | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| NI | 316021104 | Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt |
|
$ 7.79 |
