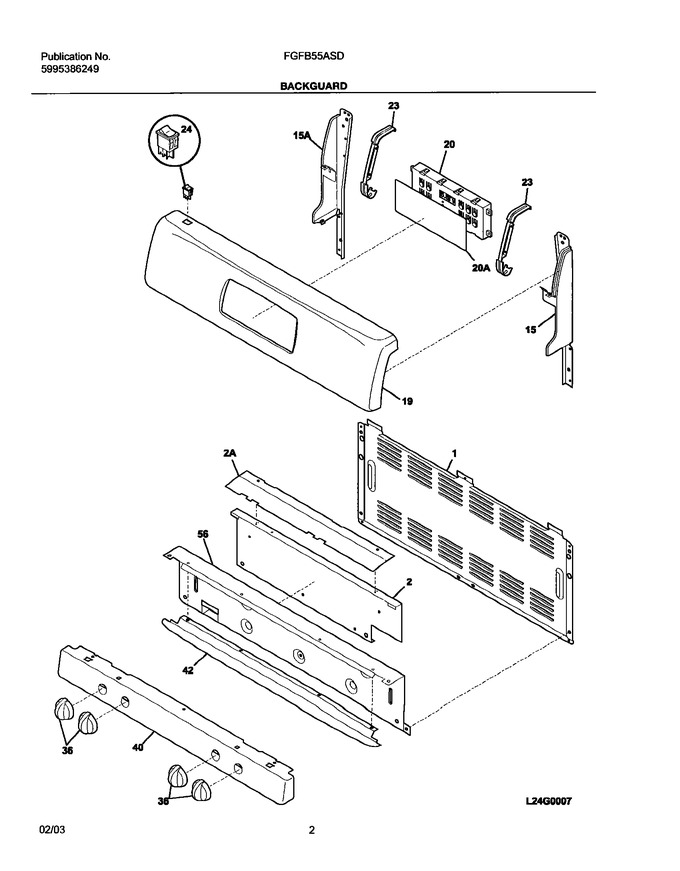

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
2	316051600		Shield,backguard ,inner		Appelez-nous	-
15	316220214		Support,backguard ,white ,rh		Appelez-nous	-
19	316233802		Panel,backguard ,white		Appelez-nous	-
23	316220900		Bracket,clock Mtg				$ 59.43
24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316246000)			Immediately	$ 16.13
36	316220000		Knob,top Valve ,white ,(4)				$ 77.97
40	316204911		Panel,manifold ,white		Appelez-nous	-
42	316236601		Trim,extrusion ,chrome		Appelez-nous	-
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316220215		Support,backguard ,white ,lh				$ 86.05
20A	316220800		Overlay,clock ,white		Appelez-nous	-
2A	316235100		Shield-top Inner		Appelez-nous	-
F20	316207504		Clock/timer,electronic		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
