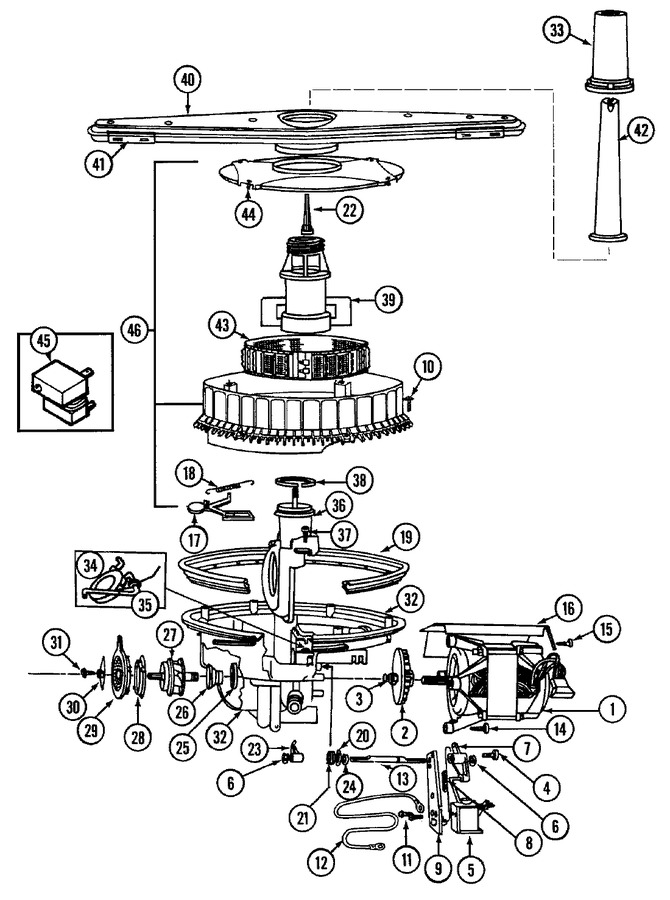

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001070		Motor (w/o-ring & Fan)	A7	Appelez-nous	-
1	903936		Motor W/``o`` Ring & Fan	A0	Appelez-nous	-
1	WPW10339879		Strap, Cable   (Replaces: 912266)	B6			$ 7.11
2	99001145		Spring, Motor Fan	B3	Appelez-nous	-
2	Y912903		Fan, Motor	A0	Appelez-nous	-
3	Y913173		Retainer, Impeller	A0	Appelez-nous	-
3	Y913174		``o`` Ring, Motor	A0	Appelez-nous	-
4	Y912892		Screw, Motor	A0	Appelez-nous	-
5	WP6-904023		Solenoid, Pull   (Replaces: 904023)	A0			$ 164.69
6	Y913109		``e`` Clip, ``d`` Shaft	A0			$ 5.96
7	913099		Crank, ``d`` Shaft	A0	Appelez-nous	-
8	Y913201		Spring, Return	A2			$ 5.83
8	W10124350		Not Required Part Or See Note Spring, Return (must Order Drain Kit No.904031)	A0	Appelez-nous	-
9	W10124350		Not Required Part Or See Note Bracket, Solenoid (must Order Drain Kit No.904031)	A0	Appelez-nous	-
9	Y913203		Bracket, Solenoid	A2	Appelez-nous	-
10	912622		Screw	A0	Appelez-nous	-
11	WP179051		Screw, Hinge----na   (Replaces: 912623)	A0		Immediately	$ 7.16
12	903882		Wire, Ground	A0	Appelez-nous	-
12	WP489128		Screw   (Replaces: 912365)	A0			$ 9.79
13	913105		``d`` Shaft	A0	Appelez-nous	-
14	Y912892		Screw, Motor	A0	Appelez-nous	-
15	WP179051		Screw, Hinge----na   (Replaces: 912623)	A0		Immediately	$ 7.16
16	Y912931		Shield, Motor	A0	Appelez-nous	-
17	Y913135		Valve, Filter	A0	Appelez-nous	-
18	Y913134		Spring, Filter Valve	A0	Appelez-nous	-
19	912529		Gasket, Pump	A0			$ 35.78
20	913106		Washer, Shaft Seal	A0	Appelez-nous	-
21	WP913108		Seal, Shaft   (Replaces: 913108)	A0			$ 8.77
22	Y912930		Nut, Spray Arm Support	A0			$ 5.70
23	W10124350		Not Required Part Or See Note Lifter (must Order Drain Kit No.904031)	A0	Appelez-nous	-
23	Y913200		Lifter	A2			$ 7.82
24	913110		``e`` Clip, ``d`` Shaft	A0	Appelez-nous	-
25	903494		Seat, Seal	A0	Appelez-nous	-
26	903493		Seal Head Assy.	A0	Appelez-nous	-
27	903962		Impeller, Pump	A0	Appelez-nous	-
28	Y912901		Ring, Wear	A0	Appelez-nous	-
29	Y912913		Plate, Chopper	A0	Appelez-nous	-
30	Y912909		Chopper	A0	Appelez-nous	-
30	Y913274		Chopper	A7	Appelez-nous	-
31	913275		Screw, Chopper	A0	Appelez-nous	-
32	Y912902		Housing, Pump	A0	Appelez-nous	-
33	Y912899		Nozzle, Center Spray	A0			$ 35.23
34	Y912924		Flapper, Drain	A0	Appelez-nous	-
35	Y913202		Spring, Flapper	A2	Appelez-nous	-
35	W10124350		Not Required Part Or See Note Spring, Flapper (must Order Drain Kit No.904031)	A0	Appelez-nous	-
36	Y912915		Volute, Pump (w/shaft)	A0	Appelez-nous	-
37	Y912891		Screw, Pump Volute	A0	Appelez-nous	-
38	Y912904		Seal, Ring	A0	Appelez-nous	-
39	WPY912900		Support, Spray Arm   (Replaces: Y912900)	A0			$ 92.52
40	904026		Arm, Lower Spray (w/shield)	A0	Appelez-nous	-
41	Y912895		Shield, Radiant	A0	Appelez-nous	-
42	WPY912912		Nozzle, ``jump-up``   (Replaces: Y912912)	A0			$ 67.48
43	Y913131		Filter, Pump	A0	Appelez-nous	-
44	Y913133		Cover, Filter	A0	Appelez-nous	-
45	903482		Relay, Motor	A0	Appelez-nous	-
45	912612		Screw, Relay	A0	Appelez-nous	-
45	Y913156		Bracket, Relay	A0	Appelez-nous	-
46	903486		Filter, Iv	A0	Appelez-nous	-
