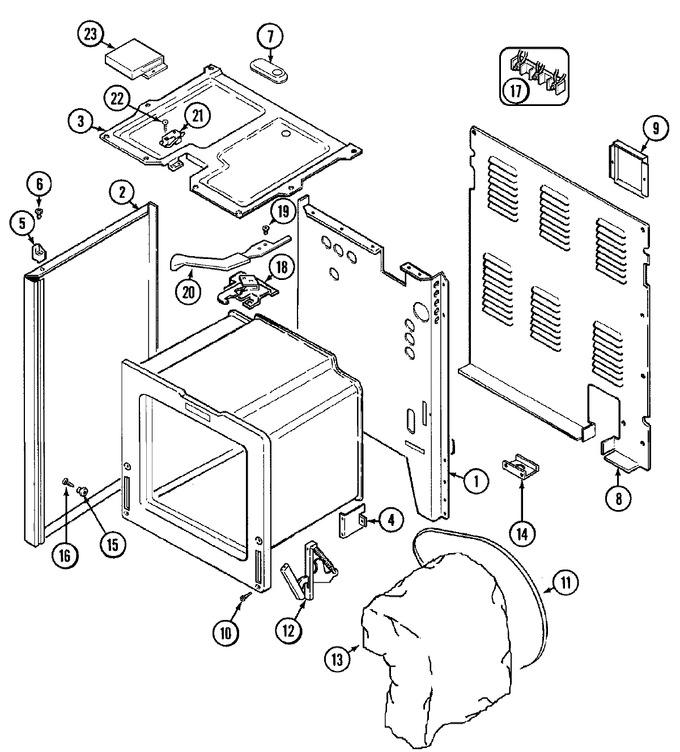

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74002334		Shield, Wire	10	Appelez-nous	-
1	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
1	74006322		Back, Main	10	Appelez-nous	-
2	74004965		Panel, Side (bsq)	10	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
3	74006384		Box, Burner	10	Appelez-nous	-
3	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	3807F400-51		Support,oven Rear	10	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	10	Appelez-nous	-
5	8010P088-60		Spacer, Main Top (rt)	10	Appelez-nous	-
6	7101P313-60		Screw (8abx3/8-zn)	10	Appelez-nous	-
7	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98
7	4005F432-45		Cover, Vent	10	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	74003241		Cover, Main Back Wire	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
9	4005F427-51		Cover, Access	10	Appelez-nous	-
10	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
11	74003385		Strap, Insulation	10	Appelez-nous	-
12	WP74011140		Hinge, Door   (Replaces: 74003243)	10		Immediately	$ 120.21
13	74005771		Insulation, Oven Wrap	10	Appelez-nous	-
13	74003382		Insulation, Back/bottom	10	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	W10190166		Bracket, Power Supply   (Replaces: 74004180)	10			$ 8.32
15	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
16	W11693756		Screw (8abx19/32-zn)   (Replaces: 74003004)	10		Immediately	$ 12.65
16	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98
17	W11684512		Screw (10abx1.0-zn)   (Replaces: 7101P060-60)	10			$ 12.69
17	WP7103P027-60		Nut, Terminal Block   (Replaces: 7103P027-60)	10		Immediately	$ 6.47
17	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	10		Immediately	$ 31.65
18	74006342		Retainer, Latch Insulation	10	Appelez-nous	-
18	74003380		Latch, Door	10	Appelez-nous	-
18	74001084		Insulation, Door Latch	10	Appelez-nous	-
19	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	10			$ 4.29
20	74003006		Lever, Latch (brn)	10	Appelez-nous	-
21	74003630		Insulator, Switch	10	Appelez-nous	-
21	74003383		Switch, Door Latch	10	Appelez-nous	-
22	7101P330-60		Screw, Switch	10	Appelez-nous	-
23	74003479		Cover, Door Latch	10	Appelez-nous	-
23	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
