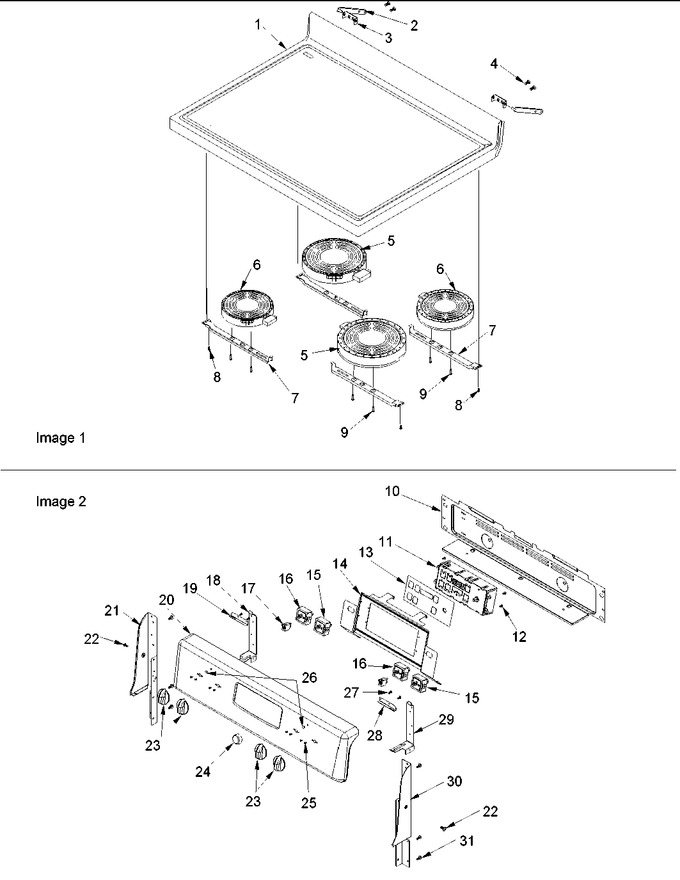

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	32041608WW		Main Top/glass (wht)		Appelez-nous	-
2	Y0315931		Pin, Hinge		Appelez-nous	-
3	Y0306150		Brkt, Hinge Strap Mtg		Appelez-nous	-
4	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
5	W10823710		Element, Ribbon 8`` 240v/2000w   (Replaces: 31939101)			Immediately	$ 330.41
6	31938901		Element, Ribbon 6`` 240v/1200w		Appelez-nous	-
7	31720701		Bracket, Element		Appelez-nous	-
9	31750715		Screw, Shoulder Ab 6-20 X .825		Appelez-nous	-
10	31954402		Cover, Upper Rear		Appelez-nous	-
11	31992501		Erc, Genesis		Appelez-nous	-
12	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
13	32025903W		Panel, Membrane Switch (wht)		Appelez-nous	-
14	31937401		Brkt, Clock (genesis)		Appelez-nous	-
15	31926702		Switch, Infinite Csi (b)		Appelez-nous	-
16	31926701		Switch, Infinite Csi (y)		Appelez-nous	-
17	31722801		Light, Indicator (125v)		Appelez-nous	-
18	32050302		Brkt/shld,wld/assy Pivot Lt		Appelez-nous	-
19	32030702		Mtg Bracket, Backguard Lt		Appelez-nous	-
20	31964517W		Panel, Control-screened (wht)		Appelez-nous	-
21	31937604W		Support, Backguard (wht) Lt		Appelez-nous	-
22	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
23	31942606W		Knob, Switch (wht)		Appelez-nous	-
24	32031303W		Knob, Clock (wht)		Appelez-nous	-
25	31750714		Screw, No.8-32 X 1/4		Appelez-nous	-
26	Y0316265		Lens, Indicator		Appelez-nous	-
27	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
28	32030701		Mtg Bracket, Backguard Rt		Appelez-nous	-
29	32050301		Brkt/shld,wld/assy Pivot Rt		Appelez-nous	-
30	31937608W		Support, Backguard (wht) Rt		Appelez-nous	-
31	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
NI	31750420		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
NI	32044201		Harness, Backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
