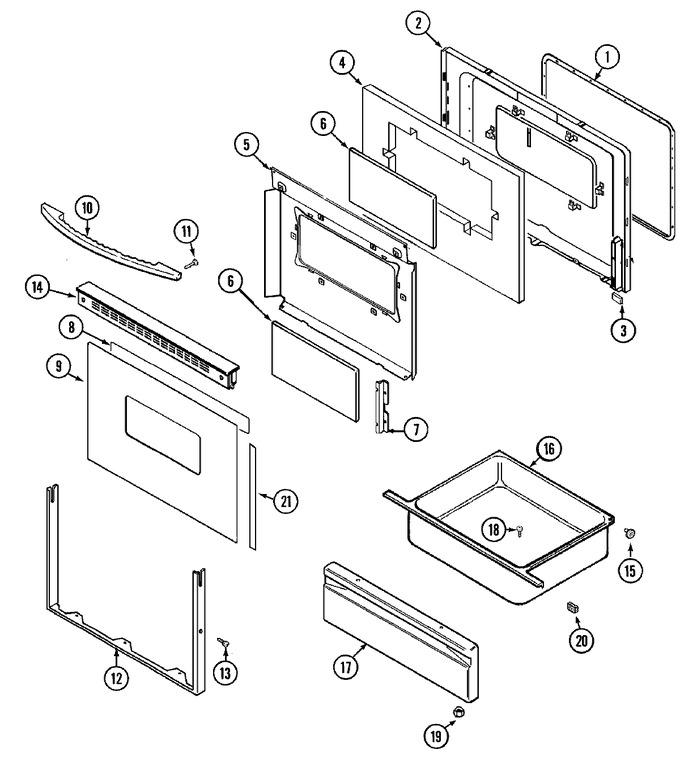

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 00 |
|
Immediately | $ 77.61 | |||
| 2 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 00 |
|
$ 9.89 | ||||
| 2 | WP74001574 | Nut, Snap (round-blk) (Replaces: 74001574) | 00 |
|
Immediately | $ 9.91 | |||
| 2 | 74004972 | Lining, Oven Door | 00 |
|
- | ||||
| 2 | 74003643 | Nut, Snap (square-blk) | 00 |
|
$ 8.02 | ||||
| 3 | WP74005546 | Spacer, Rubber (Replaces: 74005546) | 00 |
|
$ 9.48 | ||||
| 4 | 74001842 | Insulation, Door | 00 |
|
- | ||||
| 5 | 74001843 | Baffle, Door | 00 |
|
- | ||||
| 5 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 00 |
|
Immediately | $ 12.62 | |||
| 6 | 74003320 | Glass, Inner | 00 |
|
$ 86.35 | ||||
| 7 | 74001844 | Retainer, Glass | 00 |
|
- | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 00 |
|
Immediately | $ 12.62 | |||
| 8 | 8270P090-60 | Tape, Foil (3`` Wide) | 00 |
|
- | ||||
| 9 | 74006876 | Glass, Outer Door (blk) | 00 |
|
- | ||||
| 10 | 74006667 | Handle, Door (blk) | 00 |
|
- | ||||
| 11 | WP74006515 | Screw W/washer (handle Mtg) (Replaces: 74006635) | 00 |
|
$ 7.29 | ||||
| 12 | 7706P309-60 | Frame, Door (blk) | 00 |
|
- | ||||
| 13 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 00 |
|
$ 15.94 | ||||
| 14 | 74003889 | Trim, Door Top (blk) | 00 |
|
- | ||||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 00 |
|
Immediately | $ 12.62 | |||
| 15 | WP488130 | Nut (Replaces: 7103P082-60) | 00 |
|
$ 6.27 | ||||
| 15 | WP74004078 | Roller, Drawer (Replaces: 74004078) | 00 |
|
Immediately | $ 10.70 | |||
| 15 | 74005231 | Shaft, Storage Drawer Roller | 00 |
|
$ 9.23 | ||||
| 16 | 71003042 | Drawer, Storage | 00 |
|
- | ||||
| 17 | 74003399 | Panel, Drawer (wht) | 00 |
|
- | ||||
| 18 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) | 00 |
|
$ 6.77 | ||||
| 19 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 00 |
|
$ 4.00 | ||||
| 20 | WP74005546 | Spacer, Rubber (Replaces: 74005546) | 00 |
|
$ 9.48 | ||||
| 21 | 74003660 | Tape, Foil (8.75`` X 1``) | 00 |
|
- |
