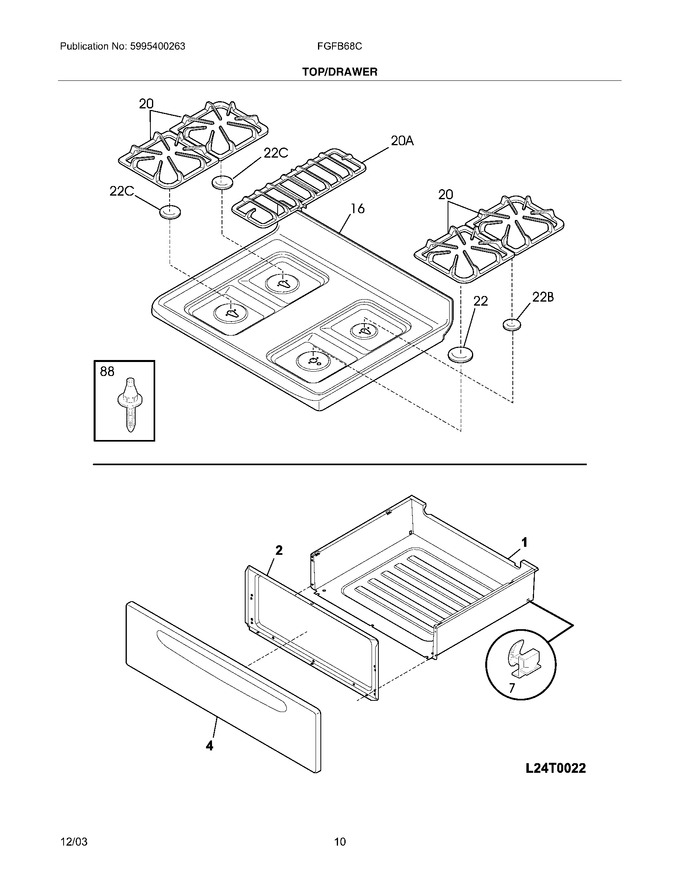

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011503		Drawer				$ 131.51
2	316231400		Liner,drawer		Appelez-nous	-
4	316231209		Panel,drawer ,bisque		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316202324		Main Top,bisque		Appelez-nous	-
20	316248503		Grate,brown ,(4)		Appelez-nous	-
22	316213603		Cap,12k Burner ,brown		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
20A	316239803		Grate,brown ,center		Appelez-nous	-
22B	316206602		Cap,5k Burner ,brown		Appelez-nous	-
22C	316213503		Cap,9.5k Burner ,brown				$ 157.34
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
