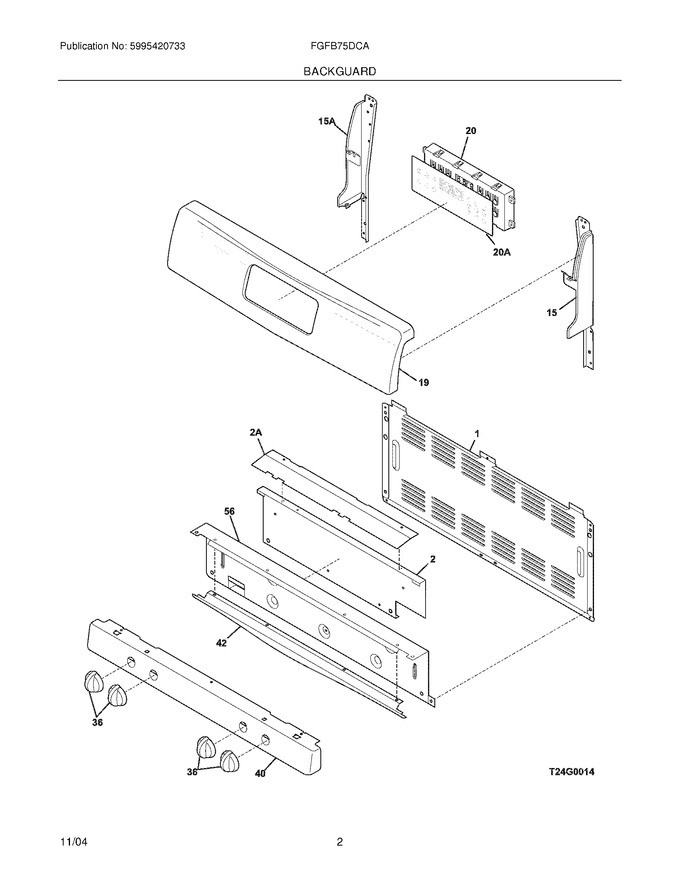

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
2	316051600		Shield,backguard ,inner		Appelez-nous	-
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316424188		Panel,control ,black				$ 291.80
36	316220002		Knob,top Valve ,black ,(4)			Immediately	$ 56.70
40	316204918		Panel-manifold,black		Appelez-nous	-
42	316416204		Trim,extrusion ,black   (Replaces: 316416200)				$ 43.99
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419339		Overlay,clock ,black ,es330   (Replaces: 316419300)				$ 48.20
2A	316235100		Shield-top Inner		Appelez-nous	-
F20	316418301		Clock/timer,electronic ,es330		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
