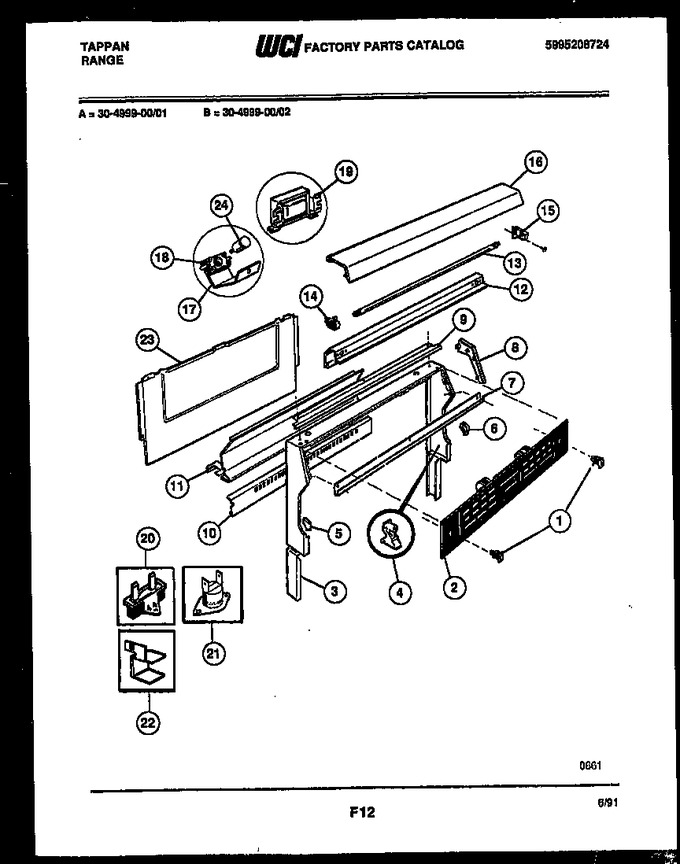

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Burner Parts


06 - Body Parts


07 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303276422		Switch-oven Light		Appelez-nous	-
2	3205296		Panel-touch Control		Appelez-nous	-
3	3204646		Trim-wrapper		Appelez-nous	-
4	5303131237		Support, Backguard		Appelez-nous	-
5	3203076		Cap End-lh		Appelez-nous	-
6	3203077		Cap End-rh		Appelez-nous	-
7	3204924		Extrusion-bottom		Appelez-nous	-
8	3204609		Cap End - Lh		Appelez-nous	-
9	3204923		Extrusion Top		Appelez-nous	-
10	3131241		Trim-vent		Appelez-nous	-
11	3205299		Trim-lower Splasher		Appelez-nous	-
12	3051308		Support-fluor Recpt		Appelez-nous	-
13	3131275		Bulb-fluor				$ 49.40
14	3051222		Recpt, Fluor Light Lh		Appelez-nous	-
15	3051223		Recpt, Fluor, Light Rh		Appelez-nous	-
16	3204614		Trim - Canopy		Appelez-nous	-
17	3017994		Brkt Starter Recpt Mtg		Appelez-nous	-
18	3017997		Recept Starter		Appelez-nous	-
19	5303051115		Ballast		Appelez-nous	-
20	3018661		Fuse-thermal Cutout		Appelez-nous	-
21	3018662		Switch-thermal		Appelez-nous	-
22	3018663		Channel-air Duct		Appelez-nous	-
23	3131123		Shield B/g		Appelez-nous	-
24	3206218		Starter				$ 54.08
*27476	3018014		Spacer-extrusion		Appelez-nous	-
11A	3205956		Panel-splasher-almd		Appelez-nous	-
22A	3018664		Duct-air B/g (non-illustrated)		Appelez-nous	-
8A	3204610		Cap End - Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
