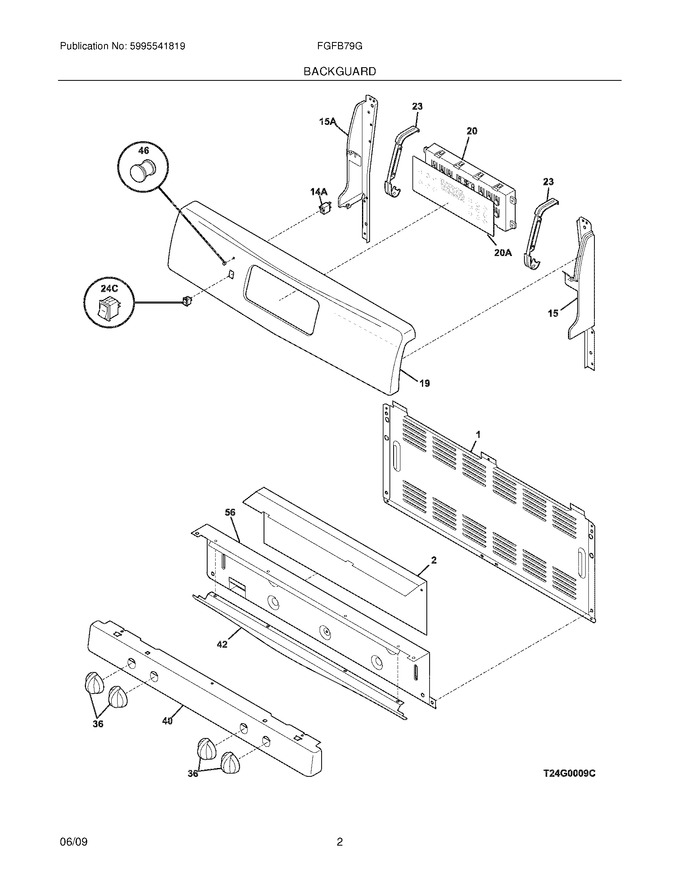

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
2	316497600		Shield,backguard ,inner				$ 66.31
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316436293		Panel,control ,alum		Appelez-nous	-
23	316419200		Bracket,clock ,(2)		Appelez-nous	-
36	316220009		Knob,top Valve ,black ,4				$ 55.36
40	316489010		Panel-manifold,black		Appelez-nous	-
42	316416204		Trim,extrusion ,black   (Replaces: 316416200)				$ 43.99
46	316557300		Lens-light/lamp,indicator ,clear			Immediately	$ 16.77
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
14A	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419303		Overlay,clock ,black ,es340			Immediately	$ 51.03
F20	316557206		Clock/timer,electronic ,es340   (Replaces: 316418306)				$ 339.06
F24C	316259800		Switch-rocker,black				$ 36.21
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
