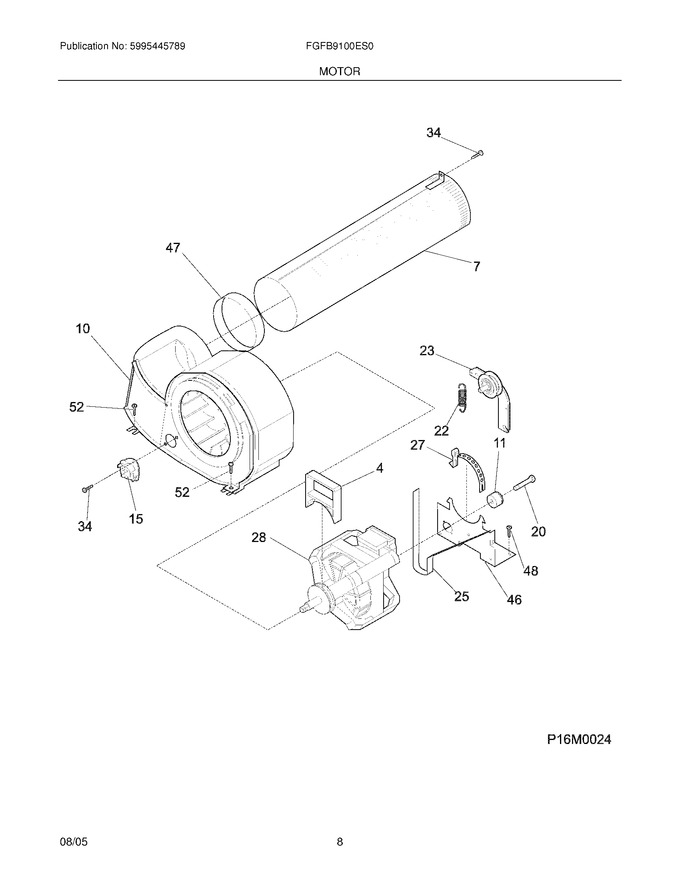

09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	131435200		Lock,blower Housing				$ 73.02
7	131451600		Tube,exhaust ,rear ,w/mtg Bracket				$ 54.02
11	131749800		Spacer-idler				$ 43.95
20	131017900		Screw,hex Head ,1/4-20t X 1.25 ,spacer Mtg.,thread Cutting				$ 14.46
22	131601000		Spring,idler Arm			Immediately	$ 82.20
27	134242400		Clamp,motor Mtg.			Immediately	$ 35.76
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
46	134203400		Bracket,motor Mtg				$ 46.67
47	131633300		Seal-exhaust Tube				$ 19.06
48	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
52	131202300		Screw,10-16ab X 0.625			Immediately	$ 13.46
F10	131775600		Blower Assy,housing ,w/cover & Wheel			Immediately	$ 155.43
F15	134587700		Thermistor,control   (Replaces: 134216500)			Immediately	$ 56.39
F23	131863007		Idler Arm Assy,w/pulley   (Replaces: 131863004)			Immediately	$ 43.05
F25	134503600		Belt,dryer			Immediately	$ 18.79
F28	131560100		Motor & Pulley Assy				$ 267.34
NI	131456800		Tube,exhaust ,side/bottom ,optional Kit				$ 36.29
