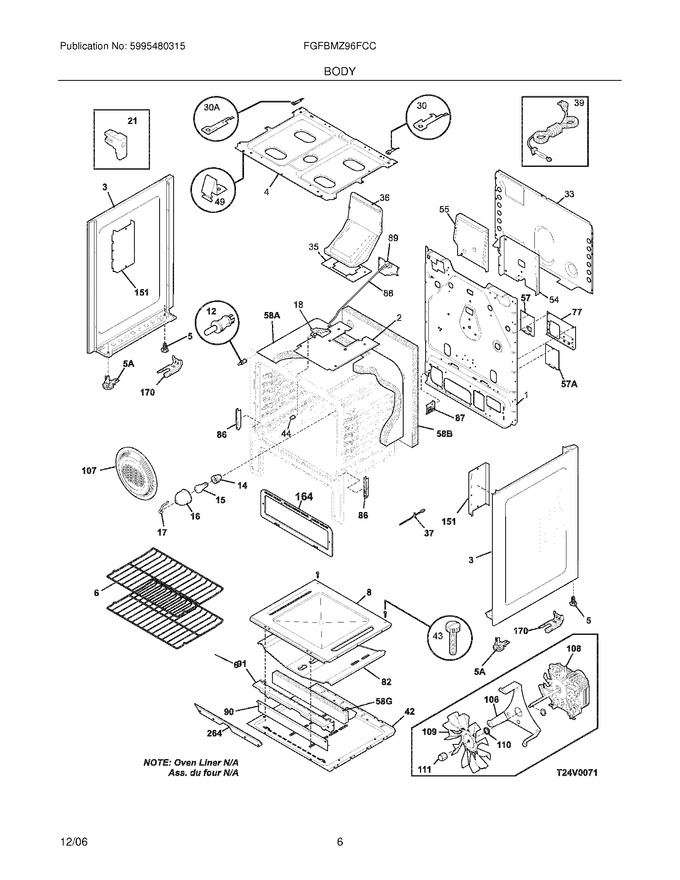

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316401602 | Back,main |
|
- | |||||
| 2 | 316402201 | Shield,oven Top |
|
- | |||||
| 3 | 316400144 | Panel,bodyside ,black ,rh (Replaces: 316400118) |
|
Immediately | $ 134.69 | ||||
| 3 | 316400145 | Panel,bodyside ,black ,lh (Replaces: 316400119) |
|
Immediately | $ 133.93 | ||||
| 4 | 316201403 | Burner Box |
|
$ 106.73 | |||||
| 5 | 316272900 | Screw,leveling ,plastic ,rear ,(2) |
|
Immediately | $ 27.50 | ||||
| 6 | 316404500 | Rack,oven |
|
$ 124.95 | |||||
| 8 | 316400603 | Panel,oven Bottom |
|
Immediately | $ 186.56 | ||||
| 12 | 316445500 | Switch,oven Light ,door Frame |
|
Immediately | $ 54.74 | ||||
| 14 | 316116400 | Receptacle,oven Light |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 316087500 | Retainer,lens |
|
$ 56.70 | |||||
| 21 | 316408000 | Clip,bodyside |
|
$ 18.20 | |||||
| 30 | 316217700 | Bracket,hinge ,rh ,main Top |
|
$ 13.42 | |||||
| 33 | 316402500 | Shield,rear Wall |
|
$ 120.49 | |||||
| 35 | 316542102 | Gasket,flue (Replaces: 316116600) |
|
$ 12.13 | |||||
| 36 | 316208901 | Flue |
|
$ 129.68 | |||||
| 42 | 316400703 | Shield,wool ,lower |
|
- | |||||
| 43 | 316282700 | Screw,8-18 X 1.438 ,oven Bottom (Replaces: 3131732) |
|
$ 9.93 | |||||
| 44 | 316246501 | Spacer,oven Door |
|
$ 12.13 | |||||
| 49 | 316234200 | Clip,maintop Mtg ,(2) |
|
$ 46.78 | |||||
| 54 | 316404200 | Shield,heat |
|
$ 57.75 | |||||
| 55 | 5304510473 | Shield,flue (Replaces: 316404800) |
|
$ 23.39 | |||||
| 57 | 316451100 | Cover,access ,w/ Holes |
|
- | |||||
| 77 | 316451200 | Plate,mounting ,safety Valve |
|
- | |||||
| 82 | 316400801 | Shield,bake Burner |
|
$ 164.57 | |||||
| 86 | 316441300 | Receptacle,hinge |
|
$ 21.97 | |||||
| 87 | 316451000 | Bracket,harness ,mini Oven |
|
- | |||||
| 88 | 316232702 | Rod,auto Latch (Replaces: 316232700) |
|
$ 12.89 | |||||
| 90 | 316401100 | Shield,main Front |
|
- | |||||
| 91 | 316401000 | Shield,front ,burner |
|
- | |||||
| 106 | 316404100 | Bracket,motor Mtg. |
|
$ 63.70 | |||||
| 107 | 316026701 | Cover,fan |
|
$ 408.89 | |||||
| 109 | 318398302 | Blade,fan (Replaces: 316136400) |
|
Immediately | $ 29.11 | ||||
| 110 | 316008401 | Washer,flat (Replaces: 316136500) |
|
$ 11.34 | |||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 151 | 316404600 | Shield,bodyside |
|
$ 49.30 | |||||
| 164 | 316450301 | Trim,front ,mini Oven |
|
- | |||||
| 170 | 316112005 | Anti-tip Kit,w/bracket,screw (Replaces: 5303935180) |
|
Immediately | $ 18.91 | ||||
| 170 | 316112500 | Template,anti-tip |
|
$ 3.55 | |||||
| 170 | 316116000 | Screw,concrete ,1.75`` ,anti-tip Brkt |
|
$ 12.89 | |||||
| 170 | 316112005 | Bracket,anti-tip (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| 264 | 316404700 | Bracket,air Dam |
|
- | |||||
| 30A | 316217701 | Bracket,hinge ,lh ,main Top |
|
$ 13.00 | |||||
| 57A | 316451101 | Cover,access ,w/o Holes |
|
- | |||||
| 58A | 316403700 | Insulation,oven Wrapper |
|
$ 304.06 | |||||
| 58B | 316403600 | Insulation,oven Back |
|
$ 125.75 | |||||
| 58G | 08067973 | Insulation, Main Front |
|
$ 51.74 | |||||
| 5A | 5304509869 | Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg (Replaces: 316407201) |
|
Immediately | $ 15.08 | ||||
| F108 | 5304467897 | Motor,convection (Replaces: 316415700) |
|
$ 231.90 | |||||
| F18 | 316405800 | Latch Assembly,oven Door |
|
Immediately | $ 56.74 | ||||
| F37 | 316490000 | Probe,oven Temp |
|
Immediately | $ 58.30 | ||||
| F39 | 5304534000 | Cord,electric Power (Replaces: 3131425) |
|
Immediately | $ 33.37 | ||||
| F89 | 5304528973 | Motor-latch (Replaces: 316464300) |
|
Immediately | $ 52.34 | ||||
| NI | 5303285179 | Screw,wafer Head `8-32t X 0.500 ,black |
|
$ 13.46 | |||||
| NI | 316437100 | Brace,oven Top |
|
$ 31.90 | |||||
| NI | 316432800 | Clip,wire |
|
- | |||||
| NI | 316418901 | Screw,trilobe ,10-32 X 5/16`` |
|
$ 14.18 | |||||
| NI | 316416651 | Harness,wiring ,main |
|
- | |||||
| NI | 316231800 | Cover,hole ,conv. Element |
|
- | |||||
| NI | 5303321321 | Paint,touch-up,black |
|
Immediately | $ 21.97 | ||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021132 | Screw,8-18 X 11/16 ,black |
|
$ 12.89 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5303271648 | Screw,wafer Hd Sq Dr ,8-18ab X 0.5 |
|
Immediately | $ 13.46 | ||||
| NI | 316519700 | Screw,cup Pt ,8-18 X 0.375 ,chrome (Replaces: 316021108) |
|
$ 10.02 |
