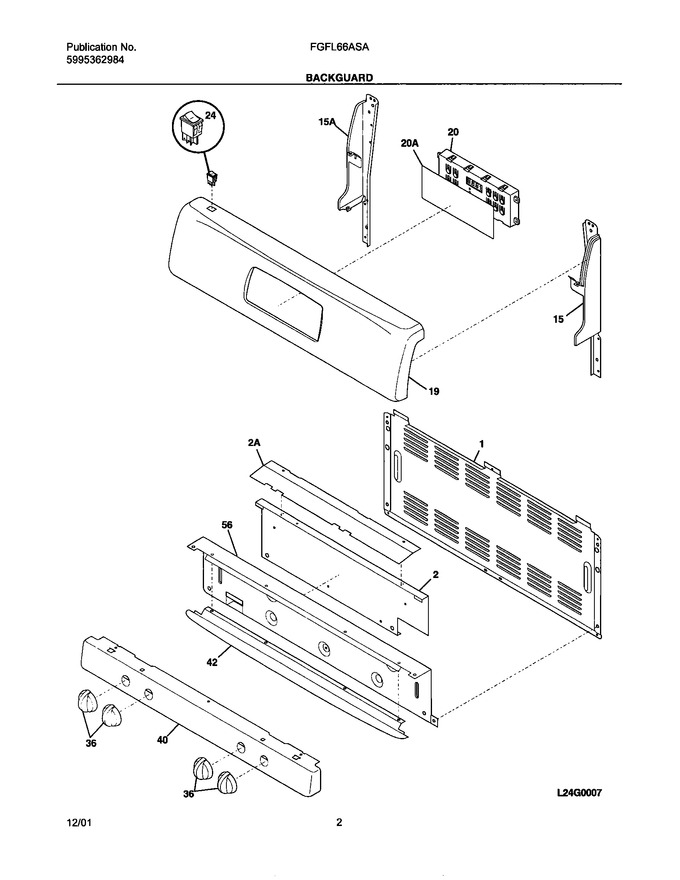

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
2	316051600		Shield,backguard ,inner		Appelez-nous	-
15	316220202		Support,backguard ,white ,rh		Appelez-nous	-
19	316232647		Panel,backguard ,white		Appelez-nous	-
36	316220000		Knob,top Valve ,white ,(4)				$ 77.97
40	316204914		Panel,manifold ,white		Appelez-nous	-
42	316236601		Trim,extrusion ,chrome		Appelez-nous	-
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316220203		Support,backguard ,white ,lh		Appelez-nous	-
20A	316220804		Overlay,clock ,white			Immediately	$ 42.53
2A	316235100		Shield-top Inner		Appelez-nous	-
F20	316222900		Clock/timer,electronic		Appelez-nous	-
F24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316246000)			Immediately	$ 16.13
NI	316021122		Screw,truss Hd `8-18 X 0.375 ,white		Appelez-nous	-
NI	316248900		Spacer,shield ,rear Wall		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
