SELECT A DIAGRAM
01 - Door Assembly
02 - Internal Components
03 - Outer Cabinet
New Model Search:

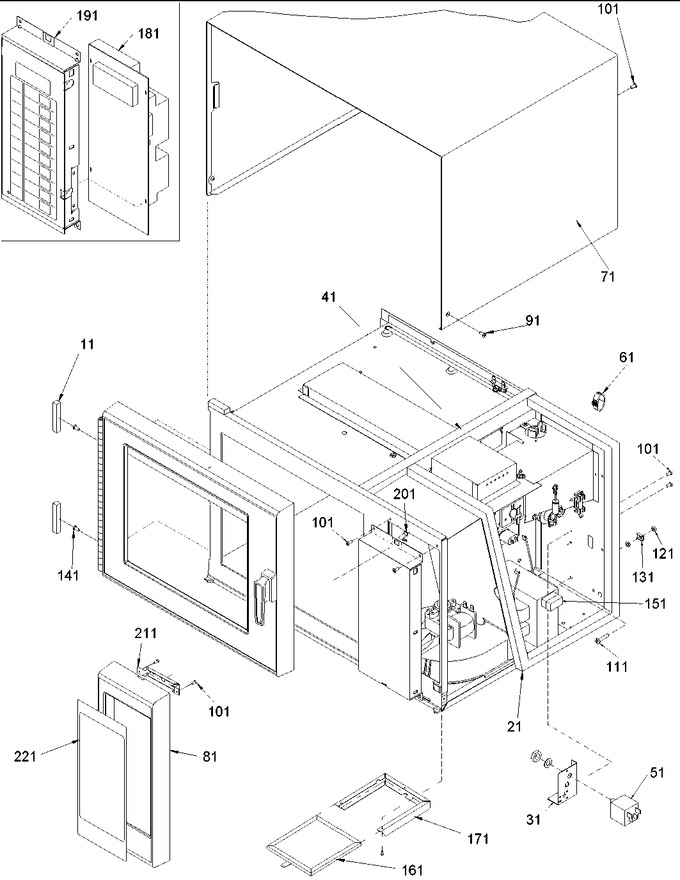

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | A3263904 | Gasket |
|
- | |||||
| 21 | A3263907 | Gasket - Each |
|
- | |||||
| 31 | B5696109 | Brkt, Line Filter |
|
- | |||||
| 41 | B8369901 | Gasket, Oven Top |
|
- | |||||
| 51 | B5717801 | Line Filter Xx |
|
- | |||||
| 61 | M0118705 | Clip, Guide |
|
- | |||||
| 71 | D7684903 | Wrapper |
|
- | |||||
| 81 | D7730101 | Escutcheon Control |
|
- | |||||
| 91 | M0231804 | Screw, Tf |
|
- | |||||
| 101 | M0231717 | Screw, Tf |
|
- | |||||
| 111 | M0200843 | Screw-mach |
|
- | |||||
| 121 | M0282021 | Nut-keps |
|
- | |||||
| 131 | 12152201 | Washer-u Type |
|
- | |||||
| 141 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 151 | 10966602 | Gasket, Neoprene |
|
- | |||||
| 161 | 10169101Q | Filter, Preform |
|
- | |||||
| 171 | D7740902 | Bracket |
|
- | |||||
| 181 | 12495214Q | Board,hv/lv-amana Prog |
|
- | |||||
| 191 | R0000357 | Assy, Touch Panel |
|
- | |||||
| 201 | B8379401 | Clip |
|
- | |||||
| 211 | C8960301 | Bracket |
|
- | |||||
| 221 | 10055104 | Insert, Escutcheon |
|
- | |||||
| 221 | C8960701 | Insert Esc Brushed Chrome |
|
- |
