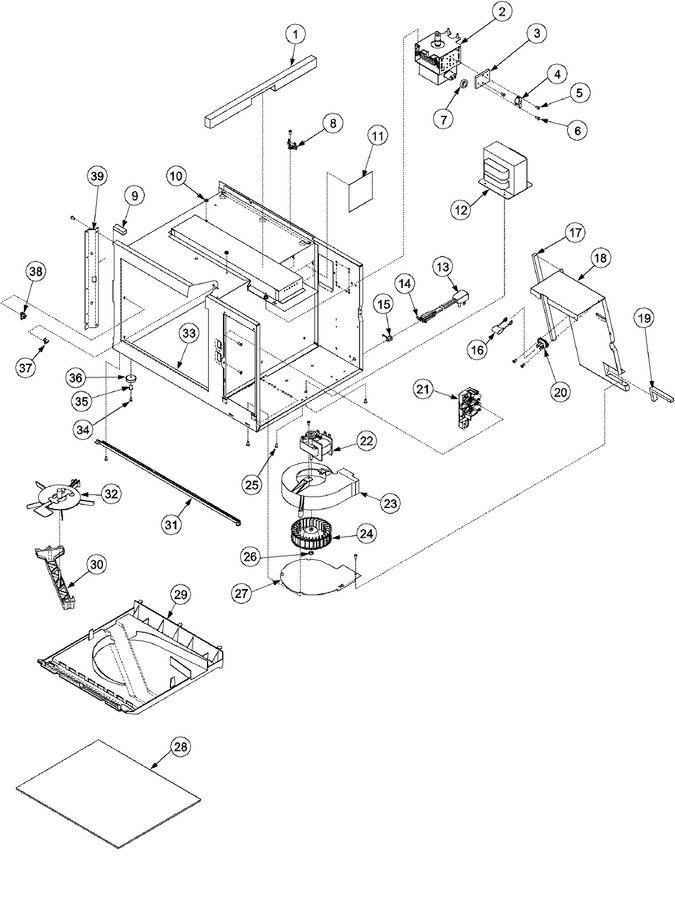

01 - Blower & Cavity
02 - Door
03 - Electric Components
04 - Outer Case
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B8369901 | Gasket, Oven Top |
|
- | |||||
| 2 | 12096201 | Magnetron |
|
- | |||||
| 3 | B8380601 | Plate, Thermal Cutout |
|
- | |||||
| 3 | M0229916 | Screw T.c |
|
- | |||||
| 4 | B5684106 | Thermal Protector |
|
- | |||||
| 5 | M0229916 | Screw T.c |
|
- | |||||
| 6 | M0232012 | Screw |
|
- | |||||
| 7 | 44780P01 | Toroid (arc Suppressor) |
|
- | |||||
| 8 | B5795305 | Fuse, Thermal |
|
- | |||||
| 8 | WPW10068250 | Screw (Replaces: M0234029) |
|
$ 3.66 | |||||
| 9 | A3030301 | Gasket (inch) |
|
- | |||||
| 10 | M0288808 | Nut |
|
- | |||||
| 11 | B8367701 | Window, Oven Light |
|
- | |||||
| 12 | D7686914 | Transformer |
|
- | |||||
| 12 | 59001052 | Screw |
|
- | |||||
| 13 | B5669025 | Cord-power |
|
- | |||||
| 14 | M0325501 | Insulator, Pod K |
|
- | |||||
| 15 | M0370009 | Relief- Strain |
|
- | |||||
| 16 | 10172901Q | Snubber Assembly |
|
- | |||||
| 17 | A3030302 | Gasket |
|
- | |||||
| 18 | D7685413 | Blower Partition,black E Ct |
|
- | |||||
| 19 | A3030302 | Gasket |
|
- | |||||
| 20 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 20 | 12QBP0508 | Kit, Triac Assy (Replaces: R0157373) |
|
$ 27.14 | |||||
| 21 | 12360503 | Switch, Interlock |
|
- | |||||
| 21 | M0216517 | Screw |
|
- | |||||
| 22 | M0213123 | Screw |
|
- | |||||
| 22 | D7670307 | Motor, Blower |
|
- | |||||
| 23 | D7684601 | Scroll, Blower |
|
- | |||||
| 24 | C8793501 | Blower Wheel |
|
- | |||||
| 25 | M0231717 | Screw, Tf |
|
- | |||||
| 26 | WP3195558 | Clip-blwr Ret (Replaces: M0118903) |
|
$ 7.68 | |||||
| 27 | C8942501 | Brkt Scroll |
|
- | |||||
| 27 | M0231704 | Screw, Tf |
|
- | |||||
| 28 | W10841140 | Sealer (Replaces: M0275598) |
|
Immediately | $ 24.92 | ||||
| 28 | C8936902 | Tray-glass Floor |
|
- | |||||
| 29 | D7692501 | Grease Shield |
|
- | |||||
| 30 | D7685505 | Cradle, Antenna |
|
- | |||||
| 31 | M0231617 | Screw,tf |
|
- | |||||
| 31 | 12667301 | Trim,oc |
|
- | |||||
| 32 | C8943002Q | Assy, Antenna |
|
$ 10.85 | |||||
| 33 | B8379401 | Clip |
|
- | |||||
| 34 | M0213147 | Screw |
|
- | |||||
| 35 | M0571201 | Eyelet |
|
- | |||||
| 36 | C8960601 | Foot, Outer Case |
|
- | |||||
| 37 | B8374901 | Support, Shelf |
|
- | |||||
| 38 | B8371001 | Support Rack |
|
- | |||||
| 39 | M0231717 | Screw, Tf |
|
- | |||||
| 39 | C8935903 | Brkt,hinge Support |
|
- |
