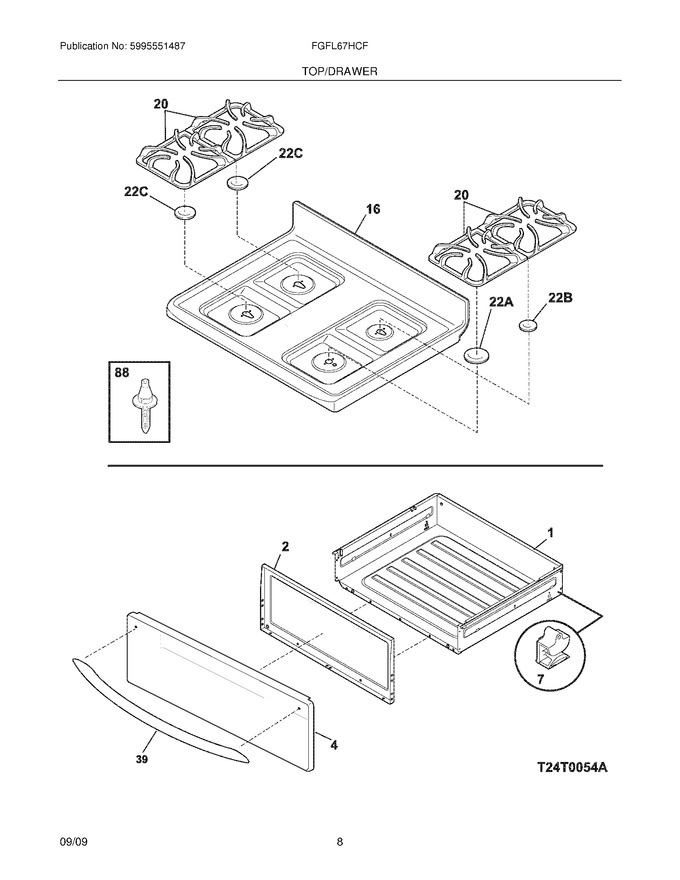

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer,utility (Replaces: 316408703) |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527988 | Liner,drawer (Replaces: 316403200) |
|
Immediately | $ 26.54 | ||||
| 4 | 316409305 | Panel,drawer ,stainless ,outer |
|
$ 269.59 | |||||
| 7 | 316407402 | Glide,drawer ,rear (Replaces: 316407400) |
|
Immediately | $ 9.86 | ||||
| 16 | 316254505 | Maintop,assembly ,black |
|
$ 197.03 | |||||
| 20 | 316202400 | Grate,black |
|
- | |||||
| 39 | 316246105 | Handle,door/drawer ,stainless (Replaces: 316246100) |
|
$ 145.31 | |||||
| 88 | 316099500 | Pin,guide ,(2) |
|
$ 6.53 | |||||
| 22A | 316438700 | Cap,14k Burner ,black |
|
$ 46.10 | |||||
| 22B | 316261700 | Cap,5k Burner ,black (Replaces: 316438300) |
|
$ 43.99 | |||||
| 22C | 316527700 | Cap,9.5k Burner ,black |
|
$ 48.99 | |||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 5303288572 | Screw-handle Mtg |
|
- | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316519700 | Screw,cup Pt ,8-18 X 0.375 ,chrome (Replaces: 316021108) |
|
$ 10.02 |
