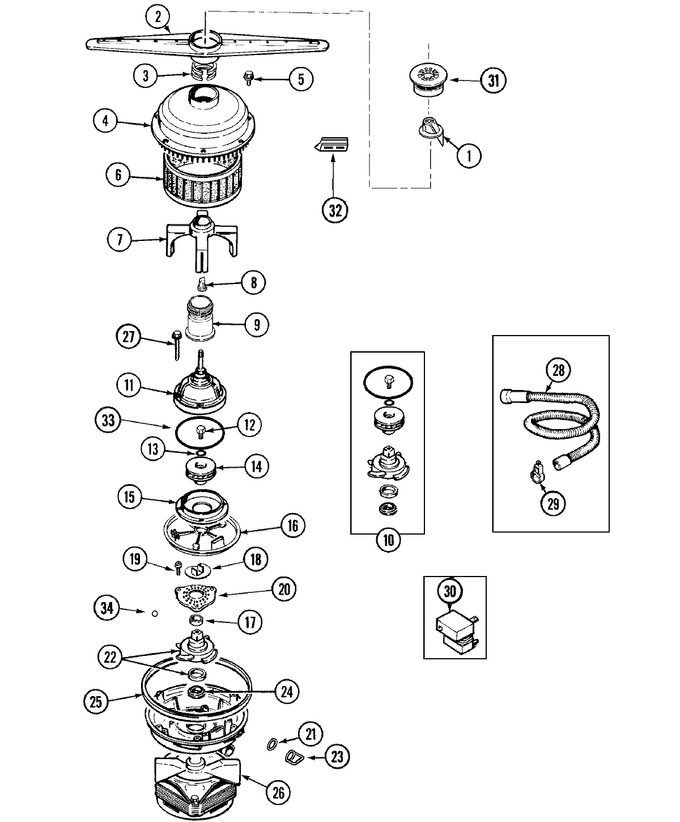

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002424		Nozzle, Jump Up (wht)				$ 38.05
2	99002419		Arm Assy, Wash (lwr-wht)				$ 31.99
3	912313		Ring, Seal				$ 33.76
4	99002466		Strainer (wht)		Appelez-nous	-
5	912622		Screw		Appelez-nous	-
6	99001791		Filter, Pump				$ 23.13
7	99002043		Assembly, Rinse Arm				$ 24.60
8	99001426		Nut, Discharge Housing				$ 5.84
9	99002041		Support, Wash Arm				$ 39.36
10	99002103		Seal Kit (motor/pump)		Appelez-nous	-
11	99002461		Discharge Housing Assy (upr)		Appelez-nous	-
12	910654		Screw, Impeller				$ 6.05
13	910934		Seal, O-ring				$ 5.83
14	WP99002069		Impeller Assembly   (Replaces: 99002069)			Immediately	$ 53.12
15	99002279		Plate, Suction		Appelez-nous	-
16	99002280		Support, Filter		Appelez-nous	-
17	912510		O-ring				$ 5.75
18	912310		Disc, Cutter				$ 5.22
19	61002031		Screw   (Replaces: 99001081)				$ 41.36
20	912309		Plate, Chopper		Appelez-nous	-
21	99001799		Flapper, Valve		Appelez-nous	-
22	903304		Drain Impeller Assembly		Appelez-nous	-
23	99001800		Clip, Retainer		Appelez-nous	-
24	902882		Seal, Pump				$ 28.18
25	912529		Gasket, Pump				$ 35.78
26	99002480		Motor/pump Housing Assembly		Appelez-nous	-
27	912383		Screw		Appelez-nous	-
28	99001782		Hose, Drain				$ 60.56
29	WP616099		Clamp, Hose (1 3/8``)   (Replaces: 99001774)			Immediately	$ 7.03
30	Y913156		Bracket, Relay		Appelez-nous	-
30	99001425		Relay, Motor		Appelez-nous	-
31	99002421		Cap, Wash Arm (wht)				$ 7.05
32	99002288		Shield, Radiant		Appelez-nous	-
33	99001326		Gasket, Discharge Hsng (upr)				$ 5.84
34	99002423		Ball, Check (grn)		Appelez-nous	-
