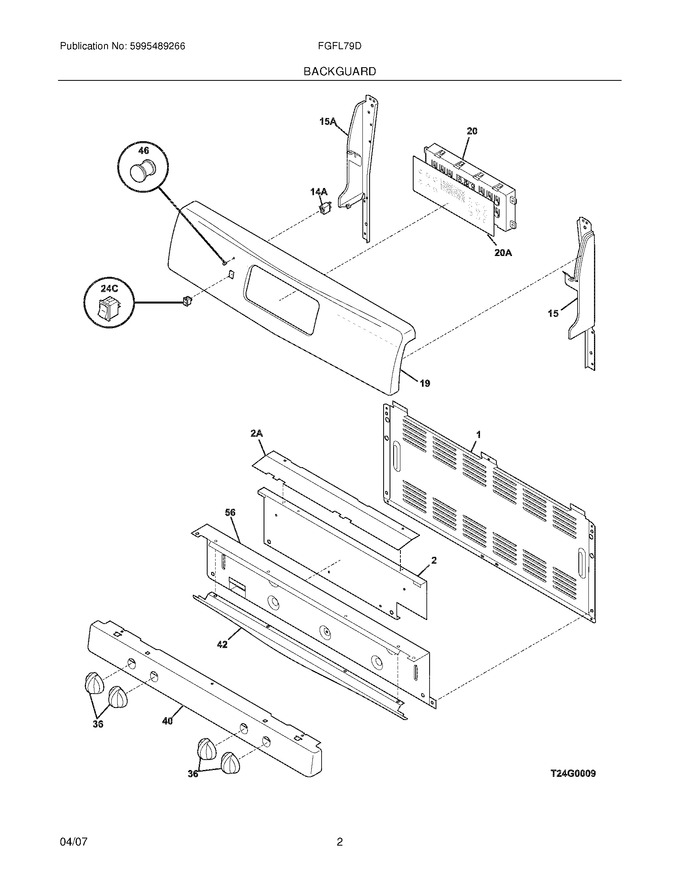

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
2	316051600		Shield,backguard ,inner		Appelez-nous	-
15	316411403		Support,backguard ,white ,rh				$ 84.10
19	316424177		Panel,control ,white		Appelez-nous	-
36	316220000		Knob,top Valve ,white ,(4)				$ 77.97
40	316489009		Panel-manifold,white				$ 73.61
42	316416205		Trim,extrusion ,gray   (Replaces: 316416201)				$ 51.57
46	316557300		Lens-light/lamp,indicator ,clear   (Replaces: 316437800)			Immediately	$ 16.77
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
14A	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15A	316411402		Support,backguard ,white ,lh				$ 94.55
20A	316419304		Overlay,clock ,white ,es340				$ 46.07
2A	316235100		Shield-top Inner		Appelez-nous	-
F20	316557206		Clock/timer,electronic ,es340   (Replaces: 316418306)				$ 339.06
F24C	316259800		Switch-rocker,white   (Replaces: 316259801)				$ 36.21
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
