SELECT A DIAGRAM

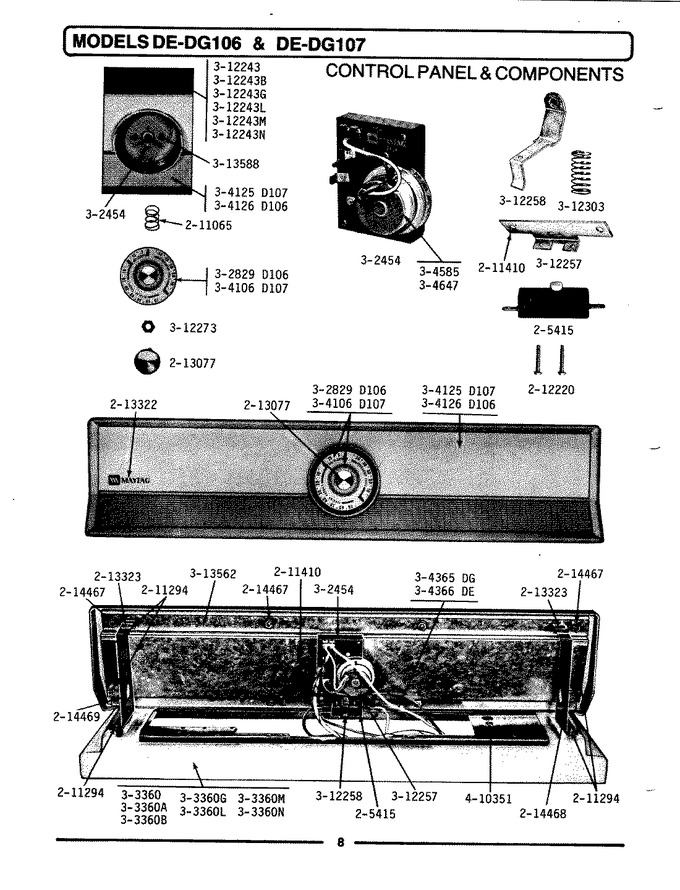

01 - Control Panel & Components


02 - Front Panel & Door Assembly


03 - Front View


04 - Inlet Duct & Heater Assembly


05 - Installation Accessories


06 - Lint Screen, Tumbler (front & Back)


07 - Motor, Blower, Base Frame & Thermostats


08 - Rear View


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10820036		Switch, Lid (w/o Tub Light)   (Replaces: 205415)			Immediately	$ 27.45
2	211065		Spring, Timer Knob				$ 5.70
3	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
4	211410		Screw, Hex Hd No.8 X 3/8 Inch				$ 6.64
5	212220		Screw-hex Hd Type B No.6 X 15/16		Appelez-nous	-
6	213077		Cap For Timer Knob		Appelez-nous	-
7	213322		Maytag Decal		Appelez-nous	-
8	213323		Fastener, Exhaust Duct Kit		Appelez-nous	-
9	214467		Nut		Appelez-nous	-
10	00214468		Bracket-left Hand   (Replaces: 214468)				$ 67.91
11	214469		Bracket-right Hand		Appelez-nous	-
12	Y302454		Timer		Appelez-nous	-
14	303360		Top Cover-white		Appelez-nous	-
15	303360A		Top Cover-dark Avocado		Appelez-nous	-
16	303360B		Top Cover-dark Coppertone		Appelez-nous	-
17	303360G		Top Cover-dark Gold		Appelez-nous	-
18	303360L		Top Cover-almond		Appelez-nous	-
19	303360M		Top Cover-harvest Wheat		Appelez-nous	-
20	303360N		Top Cover-fresh Avocado		Appelez-nous	-
21	Y304106		Timer Dial & Knob, Sun-glow		Appelez-nous	-
22	304125		Control Panel, Sun-glow		Appelez-nous	-
24	304365		Main Wire Harness		Appelez-nous	-
25	304366		Main Wire Harness		Appelez-nous	-
26	Y304585		Timer Motor Rpr		Appelez-nous	-
27	304647		Timer Motor		Appelez-nous	-
28	312243		Control Cover-white		Appelez-nous	-
29	312243B		Control Cover-dk Coppertone		Appelez-nous	-
30	312243G		Control Cover-dark Gold		Appelez-nous	-
31	312243L		Control Cover-almond		Appelez-nous	-
32	312243M		Control Cover-harvest Wheat		Appelez-nous	-
33	312243N		Control Cover-fresh Avocado		Appelez-nous	-
34	312257		Bracket		Appelez-nous	-
35	312258		Actuator		Appelez-nous	-
36	W10155650		Nut   (Replaces: 312273)				$ 12.03
37	312303		Spring		Appelez-nous	-
38	313562		Back-up Plate		Appelez-nous	-
39	WP488234		Screw   (Replaces: Y313588)				$ 6.07

    View Diagram in Separate Window       Print Part List
