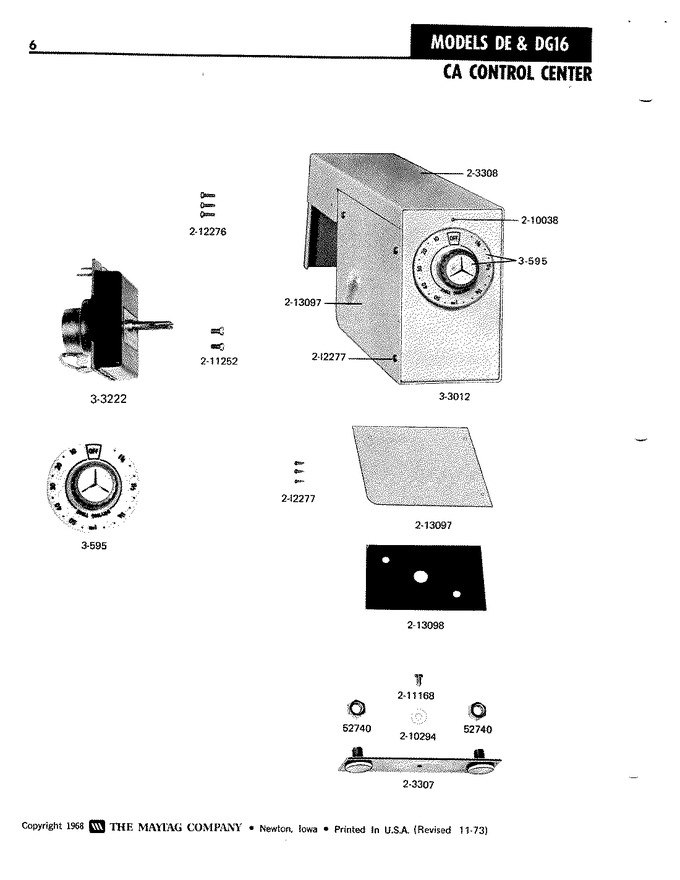

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 300595 | Knob And Dial | 00 |
|
- | ||||
| 2 | 303012 | Control Center-white | 00 |
|
- | ||||
| 3 | Y303222 | Timer Rpr | 00 |
|
- | ||||
| 4 | 203307 | Mtg. Strap----na | 00 |
|
- | ||||
| 5 | 203308 | Outer Case-white | 00 |
|
- | ||||
| 6 | 210038 | Button Marker | 00 |
|
- | ||||
| 7 | 210294 | Washer | 00 |
|
- | ||||
| 8 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 9 | WP489399 | Screw (Replaces: 211252) | 00 |
|
$ 6.26 | ||||
| 10 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 11 | WP1163283 | Screw, No.8 X 1/2 Inch (Replaces: 212277) | 00 |
|
$ 6.47 | ||||
| 12 | 213097 | Access Door For Timer | 00 |
|
- | ||||
| 13 | 213098 | Gasket Under Control Center | 00 |
|
- | ||||
| 14 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 |
