SELECT A DIAGRAM

01 - Control Panel (rev. J-k)


02 - Cylinder & Drive (rev. J-k)

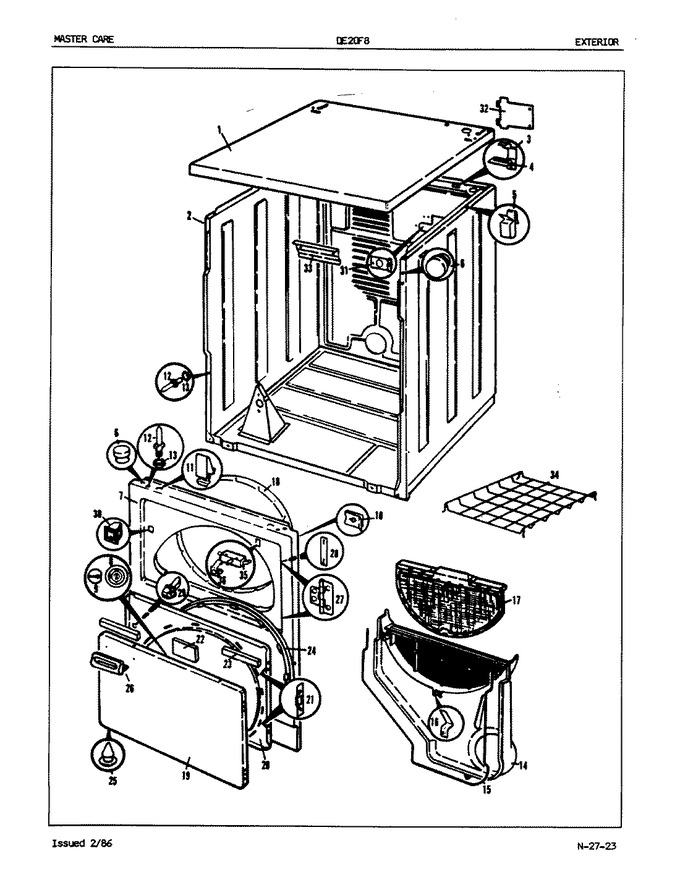

03 - Exterior (rev. J-k)


04 - Heater (rev. J-k)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-0124		Cabinet Top	J-K	Appelez-nous	-
2	53-0667		Cabinet Asm	J-K	Appelez-nous	-
3	63-5712		Hinge, Cabinet Top	J-K	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	J-K		Immediately	$ 7.04
4	33-0930		Pad, Top Hinge	J-K	Appelez-nous	-
5	25-3034		Clip, Wiring	J-K	Appelez-nous	-
6	33-2653		Bumper, Cabinet	J-K	Appelez-nous	-
7	53-0126		Front Panel	J-K	Appelez-nous	-
10	25-7817		Clip, U-type	J-K	Appelez-nous	-
10	WP489478		Screw, Front Panel To Cabinet   (Replaces: 25-7820)	J-K			$ 6.98
11	WP25-7220		Clip, Cabinet Top   (Replaces: 25-7220)	J-K			$ 10.77
12	63-6148		Pin, Locator	J-K	Appelez-nous	-
13	53-0200		Sleeve, Locator Pin	J-K	Appelez-nous	-
13	WP3400029		Nut, Locator Pin   (Replaces: 25-0224)	J-K		Immediately	$ 6.98
14	12001324		Collector Duct   (Replaces: 53-0917)	J-K			$ 187.37
14	489392		Screw 8-18x1/2 Truss H   (Replaces: 25-7810)	J-K			$ 12.02
15	53-0204		Seal	J-K	Appelez-nous	-
16	53-0123		Clip	J-K	Appelez-nous	-
17	53-0701		Lint Screen	J-K			$ 39.15
18	WP31001637		Seal Assy (gray)   (Replaces: 53-0282)	J-K			$ 30.62
19	53-0154		Panel, Outer Door (wht)	J-K	Appelez-nous	-
20	53-0104		Inner Panel	J-K	Appelez-nous	-
21	53-0119		Clip, Hinge	J-K	Appelez-nous	-
22	53-0251		Pad, Door	J-K	Appelez-nous	-
23	53-0252		Pad, Door	J-K	Appelez-nous	-
24	WP31001529		Door Seal   (Replaces: 53-0648)	J-K			$ 115.24
24	25-7770		Screw, Outer To Inner Door	J-K	Appelez-nous	-
25	25-3534		Plug Button, Door	J-K	Appelez-nous	-
26	489392		Screw 8-18x1/2 Truss H   (Replaces: 25-7810)	J-K			$ 12.02
26	53-0116		Door Handle	J-K	Appelez-nous	-
27	53-0122		Hinge, Door	J-K	Appelez-nous	-
28	LA-1003		Door Catch Kit (incl. 21 & 22)	J-K		Immediately	$ 24.51
28	W10756178		Screw, No.6-20 1/2 Flthd Torx   (Replaces: 25-7809)	J-K			$ 5.39
28	53-0121		Twin Nut	J-K	Appelez-nous	-
29	LA-1003		Strike, Door   (Replaces: 73-0033)	J-K		Immediately	$ 24.51
30	LA-1003		Door Catch   (Replaces: 53-0882)	J-K		Immediately	$ 24.51
31	53-0135		Support, Power Cord	J-K	Appelez-nous	-
31	WP489483		Screw, No.10 Torq Limiting   (Replaces: 25-7828)	J-K			$ 9.78
32	53-0136		Cover, Supply Cord	J-K	Appelez-nous	-
32	W10124350		Not Required Part Or See Note Screw-purchased Locally	J-K	Appelez-nous	-
33	WP12990527		Screw, Sems   (Replaces: 25-3457)	J-K		Immediately	$ 7.15
33	53-0133		Shield, Heat	J-K	Appelez-nous	-
34	LA-1005		Switch Kit (incl. 23 & 24)	J-K			$ 31.33
34	53-0772		Rack, Drying	J-K	Appelez-nous	-
35	53-0148		Switch, Door	J-K			$ 22.49
36	WP31001319		Clip, Switch   (Replaces: 63-5990)	J-K			$ 0.84

    View Diagram in Separate Window       Print Part List
