Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3400074 Screw   (Replaces: 25-7863) Special Order $ 6.47

1 LA-1044 Heater Element   (Replaces: 53-0919) In-Stock Immediately $ 51.91

1 LA-1044 Heater Element   (Replaces: 53-0920) REV.F In-Stock Immediately $ 51.91

2 25-7819 Screw No.8-18x1/2 Pan Hd Appelez-nous -
2 53-0191 Htr Housing Asm Appelez-nous -
3 WP53-0771 Hi Lmt Tstat   (Replaces: 53-0306) Special Order $ 110.87

3 W10124350 Not Required Part Or See Note Screw-purchased Locally Appelez-nous -
3 WP53-0771 Thermostat, Hi-limit   (Replaces: 53-0771) REV.F Special Order $ 110.87

4 WP90767 Screw   (Replaces: 25-7741) In-Stock Immediately $ 7.04

4 53-0285 Bracket, Thermostat Appelez-nous -
5 26-6124 Nut Appelez-nous -
5 WP3400074 Screw   (Replaces: 25-7803) Special Order $ 6.47

5 25-3123 Washer, Cup Appelez-nous -
5 25-3122 Washer, Flat Appelez-nous -
5 WP112432 Nut (no.10-32)   (Replaces: 25-0027) Special Order $ 7.16

5 53-0166 Terminal Block Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

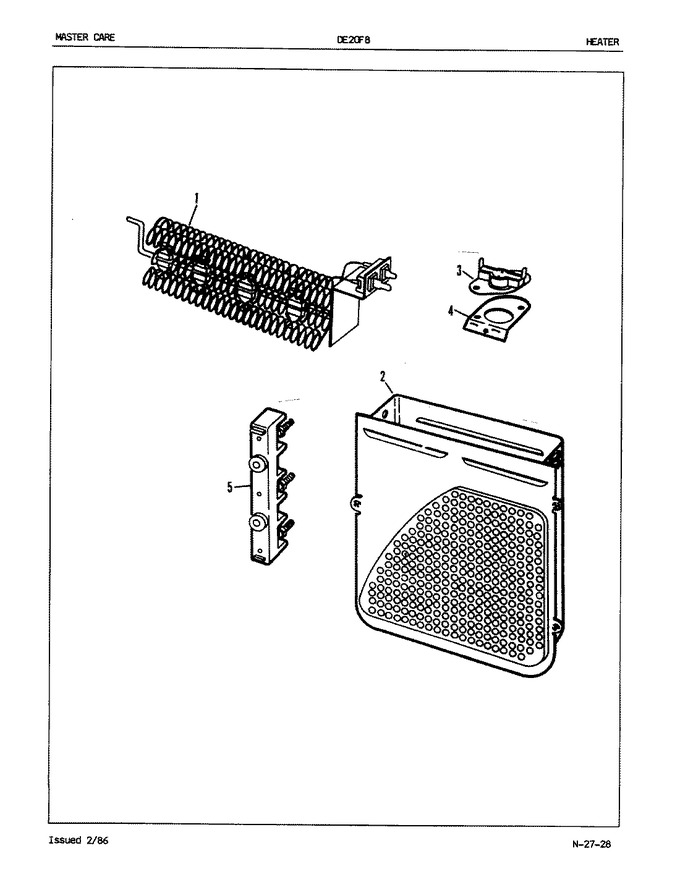

Diagram for DE20F8AM
