SELECT A DIAGRAM

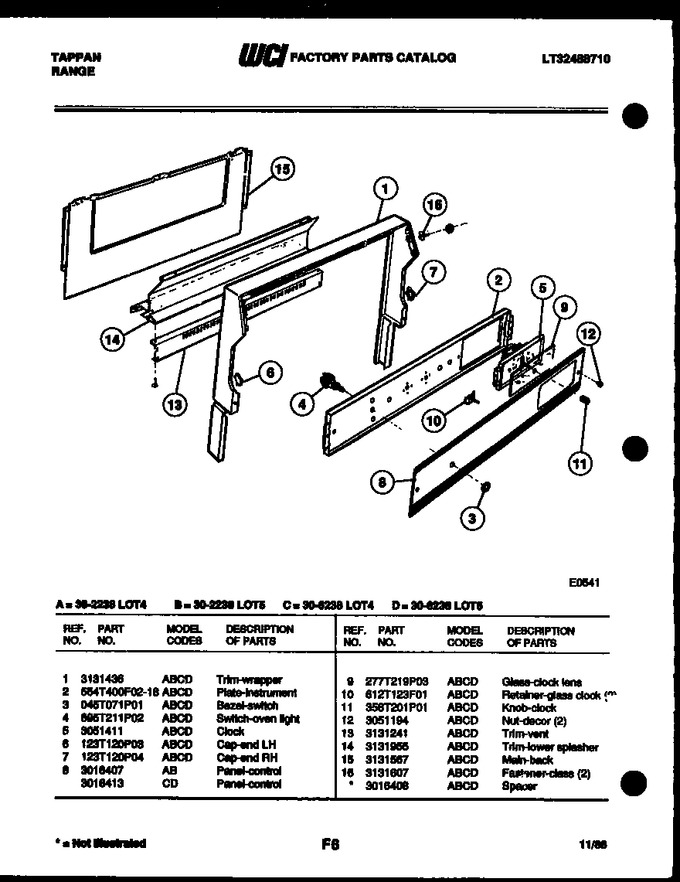

02 - Backguard And Control Parts


03 - Cooktop Parts


04 - Door Parts


05 - Broiler Drawer Parts


06 - Burner Parts


07 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131436		Trim Wrapper		Appelez-nous	-
2	554T400F02-18		Plate-instrument		Appelez-nous	-
3	045T071P01		Bezel, Switch		Appelez-nous	-
4	695T211P02		Switch - Oven Light		Appelez-nous	-
5	3051411		Clock		Appelez-nous	-
6	123T120P03		Cap-end (l.h.)		Appelez-nous	-
7	123T120P04		Cap-end (r.h.)		Appelez-nous	-
8	3016413		Panel-control		Appelez-nous	-
9	277T219P03		Glass-clock Lens		Appelez-nous	-
10	612T123F01		Retainer-glass Clock (2)		Appelez-nous	-
11	358T201F01		Knob-clock		Appelez-nous	-
12	3051194		Nut - Decor (2)		Appelez-nous	-
13	3131241		Trim-vent		Appelez-nous	-
14	3131955		Trim-lower Splasher		Appelez-nous	-
15	3131567		Main-back		Appelez-nous	-
16	3131607		Fastener-class (2)		Appelez-nous	-
*19991	3016408		Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
