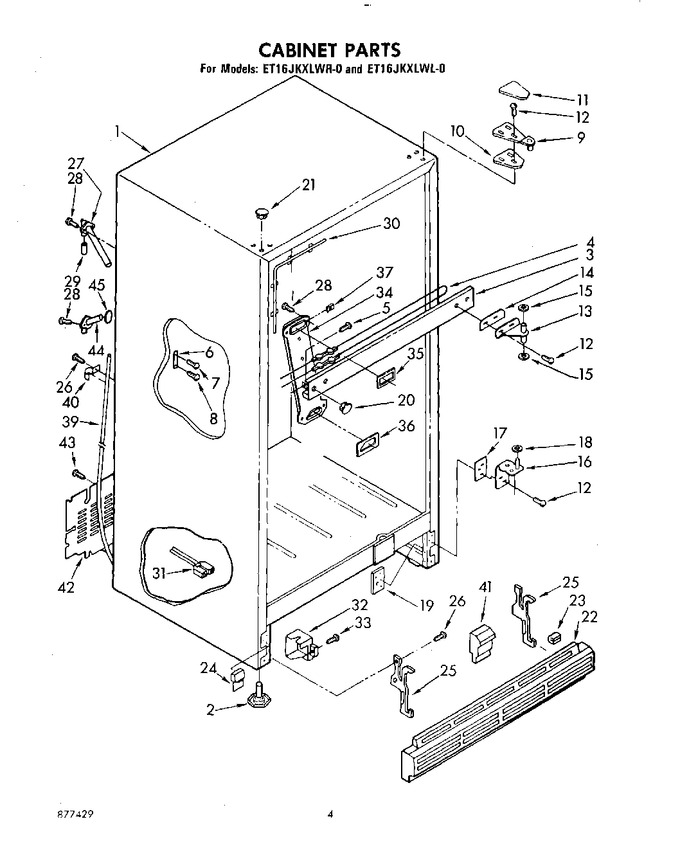

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	836392		Cabinet, Leveler		Appelez-nous	-
3	989191		Rail, Center (almond)		Appelez-nous	-
3	989907		Rail, Center (new Avocado)		Appelez-nous	-
3	989906		Rail, Center (golden Harvest)		Appelez-nous	-
3	989905		Rail, Center (coffee)		Appelez-nous	-
3	836066		Rail, Center (white)		Appelez-nous	-
4	989254		Heater, Mullion		Appelez-nous	-
5	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
5	487470		Screw (repair)		Appelez-nous	-
6	547603		Strap, Ground		Appelez-nous	-
7	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 9.79
8	488684		Screw, 8-32 X 1-1/2		Appelez-nous	-
9	842039		Hinge Assembly Top		Appelez-nous	-
10	836151		Shim, Hinge Top		Appelez-nous	-
11	842010		Hinge Cover (white)		Appelez-nous	-
11	989194		Hinge Cover (almond)		Appelez-nous	-
11	989897		Hinge Cover (new Avocado)		Appelez-nous	-
11	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
11	989895		Hinge, Cover (coffee)		Appelez-nous	-
12	WP999367		Screw, 10-32 X 3/4 (3)   (Replaces: 488948)				$ 7.07
12	488949		Screw (repair)		Appelez-nous	-
13	836153		Hinge, Center		Appelez-nous	-
14	836155		Shim, Hinge Center		Appelez-nous	-
15	WP488296		Washer, 11/64 (2)   (Replaces: 488296)				$ 6.47
16	836686		Hinge Bottom R.h.		Appelez-nous	-
16	836687		Hinge Bottom L.h.		Appelez-nous	-
17	836196		Shim, Bottom Hinge		Appelez-nous	-
18	WP487802		Washer   (Replaces: 488184)			Immediately	$ 7.12
19	836162		Tap Plate		Appelez-nous	-
20	989881		Hole Plug (coffee)		Appelez-nous	-
20	989882		Hole Plug (golden Harvest)		Appelez-nous	-
20	989883		Hole Plug (new Avocado)		Appelez-nous	-
20	989193		Hole, Plug (almond)		Appelez-nous	-
20	835974		Hole, Plug (white)		Appelez-nous	-
21	989875		Hole Plug (coffee)		Appelez-nous	-
21	989876		Hole Plug (golden Harvest)		Appelez-nous	-
21	989877		Hole Plug (new Avocado)		Appelez-nous	-
21	989195		Hole Plug (almond)		Appelez-nous	-
21	842031		Hole Plug (white)		Appelez-nous	-
22	934567		Grille		Appelez-nous	-
23	546131		Bumper, Grille (2)		Appelez-nous	-
24	934569		Filler, Corner		Appelez-nous	-
25	844614		Support, Grille (2)		Appelez-nous	-
26	W11624204		Screw, 8 X 1/2 (2)   (Replaces: 486194)				$ 12.62
27	WP2196157		Fitting, Tube   (Replaces: 836489)			Immediately	$ 10.79
28	WP98165		Screw, 8 X 5/8   (Replaces: 488401)				$ 7.20
29	WP487996		Cap, Plastic   (Replaces: 487996)				$ 7.43
30	531670		Stile, Heater		Appelez-nous	-
31	548734		Wire, Water Valve		Appelez-nous	-
32	549947		Box, Junction		Appelez-nous	-
33	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.01
34	934057		Duct, Air		Appelez-nous	-
35	836565		Gasket Inlet		Appelez-nous	-
36	934058		Gasket, Inlet		Appelez-nous	-
37	488564		Speed Nut		Appelez-nous	-
39	8316810		Tube, Drain   (Replaces: 509638)				$ 107.76
40	836077		Tube Clamp		Appelez-nous	-
41	836372		Insert, Air Baffle		Appelez-nous	-
42	850639		Cover		Appelez-nous	-
43	WPW10141645		Screw, 8 X 1/2 (6)   (Replaces: 489084)				$ 6.90
44	942546		Fitting, Drain		Appelez-nous	-
45	940121		Gasket, Seal		Appelez-nous	-
