SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

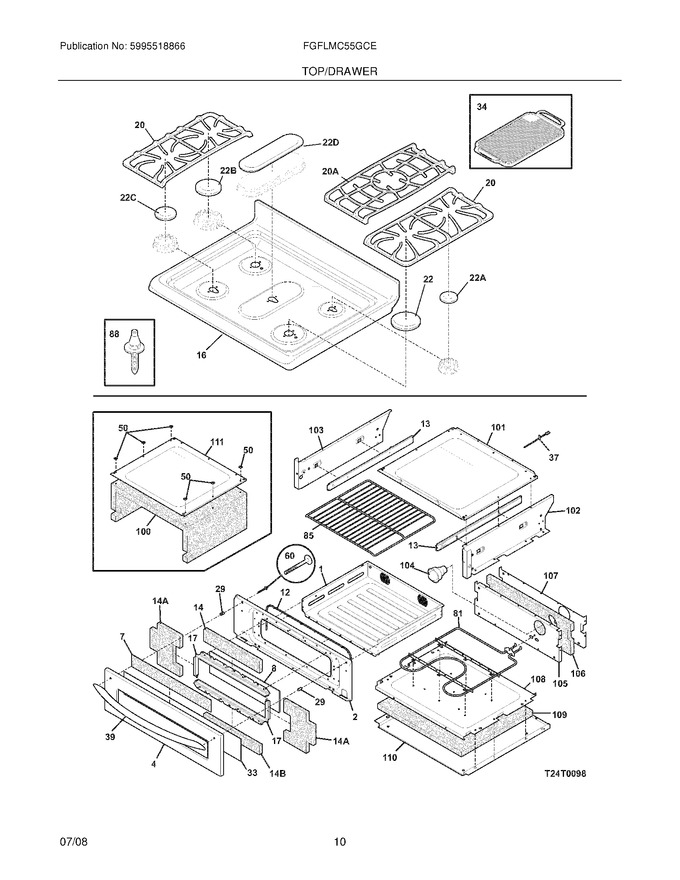

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316414105		Drawer,mini Oven		Appelez-nous	-
2	316450003		Liner,drawer ,mini Oven ,w/window		Appelez-nous	-
4	316450209		Panel,drawer ,stainless ,outer		Appelez-nous	-
7	316437201		Insolator,heat ,drawer Front		Appelez-nous	-
8	316431902		Glass,inner Door ,mini Oven		Appelez-nous	-
12	316410702		Seal,door ,mini Oven		Appelez-nous	-
13	316449800		Glide,drawer ,mini Oven ,(2)		Appelez-nous	-
14	316451502		Insulation,door Top ,mini Oven		Appelez-nous	-
16	316411243		Maintop,black				$ 154.67
17	316450101		Spacer,glass ,mini Oven ,(2)		Appelez-nous	-
20	316499806		Grate,black ,(2)   (Replaces: 316499502)				$ 354.16
22	316271904		Cap,16/17k Burner ,black				$ 206.11
29	316429000		Spacer,handle ,(2)		Appelez-nous	-
33	316432001		Glass,drawer ,front		Appelez-nous	-
34	316499900		Griddle				$ 114.83
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
50	316452100		Fastener,push Nut ,(6)		Appelez-nous	-
60	316001015		Screw,waf Hd Sq ,10-24 X 1.25 ,(2) ,handle Mtg				$ 9.45
85	316411000		Rack,mini Oven				$ 67.15
88	316099500		Pin,guide ,(2)				$ 6.53
100	316451300		Insulation,wrapper ,mini Oven		Appelez-nous	-
101	316410201		Panel,top ,mini Oven		Appelez-nous	-
102	316450501		Panel,side ,rh ,mini Oven		Appelez-nous	-
103	316450503		Panel,side ,lh ,mini Oven		Appelez-nous	-
104	316431500		Light Assembly,mini Oven				$ 29.82
105	316450803		Panel,back ,mini Oven		Appelez-nous	-
106	316451400		Insulation,back ,mini Oven		Appelez-nous	-
107	316451601		Shield,main Back ,mini Oven		Appelez-nous	-
108	316410101		Panel,bottom ,mini Oven		Appelez-nous	-
109	316410800		Insulation,floor ,mini Oven		Appelez-nous	-
110	316410401		Shield,floor ,mini Oven		Appelez-nous	-
111	316450401		Shield,top ,mini Oven		Appelez-nous	-
14A	316451501		Insulation,door Sides ,mini Oven ,(2)		Appelez-nous	-
14B	316414203		Insulation,door Bottom ,mini Oven				$ 12.02
20A	316499602		Grate,black ,center				$ 248.85
22A	316206604		Cap,5k Burner ,black				$ 102.69
22B	316213605		Cap,12k Burner ,black				$ 143.06
22C	316213505		Cap,9.5k Burner ,black				$ 102.30
22D	316532103		Cap,9.5k Burner ,oval ,black ,center				$ 124.85
F37	316217004		Probe,oven Temp ,mini Oven				$ 54.12
F81	316450903		Element,bake ,mini Oven				$ 134.19
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316416919		Harness,mini Oven Cntl		Appelez-nous	-
NI	316452200		Clip,wire		Appelez-nous	-
