SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

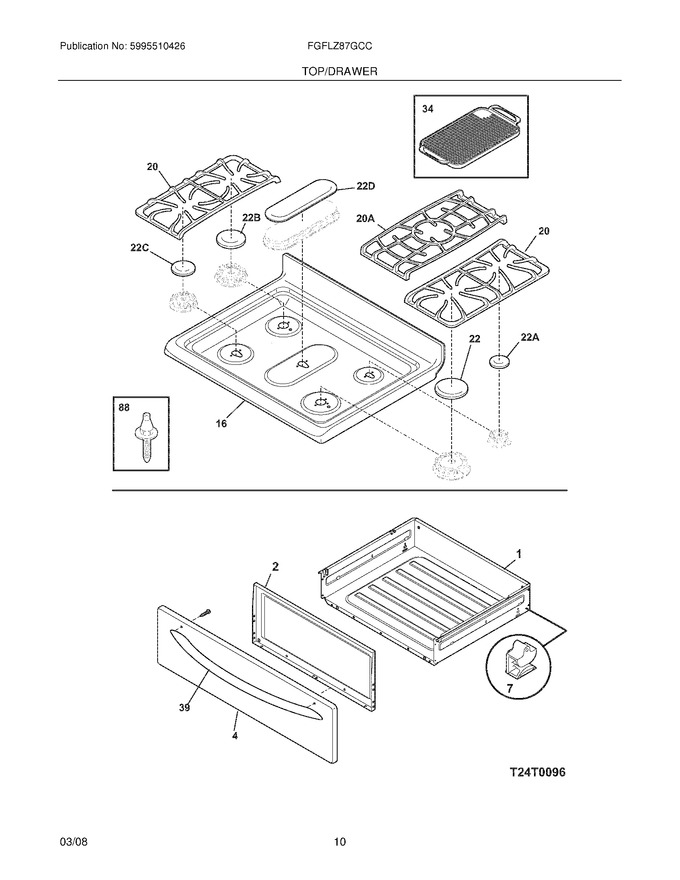

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527988		Liner,drawer   (Replaces: 316403200)			Immediately	$ 26.54
4	5304494412		Panel,drawer ,stainless ,outer   (Replaces: 316409307)				$ 98.53
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316411243		Maintop,black				$ 154.67
20	316499806		Grate,black ,(2)   (Replaces: 316499502)				$ 354.16
22	316271904		Cap,16/17k Burner ,black				$ 206.11
34	316499900		Griddle				$ 114.83
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
88	316099500		Pin,guide ,(2)				$ 6.53
20A	316499602		Grate,black ,center				$ 248.85
22A	316206604		Cap,5k Burner ,black				$ 102.69
22B	316213605		Cap,12k Burner ,black				$ 143.06
22C	316213505		Cap,9.5k Burner ,black ,(2)				$ 102.30
22D	316532103		Cap,9.5k Burner ,oval ,black ,center				$ 124.85
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
