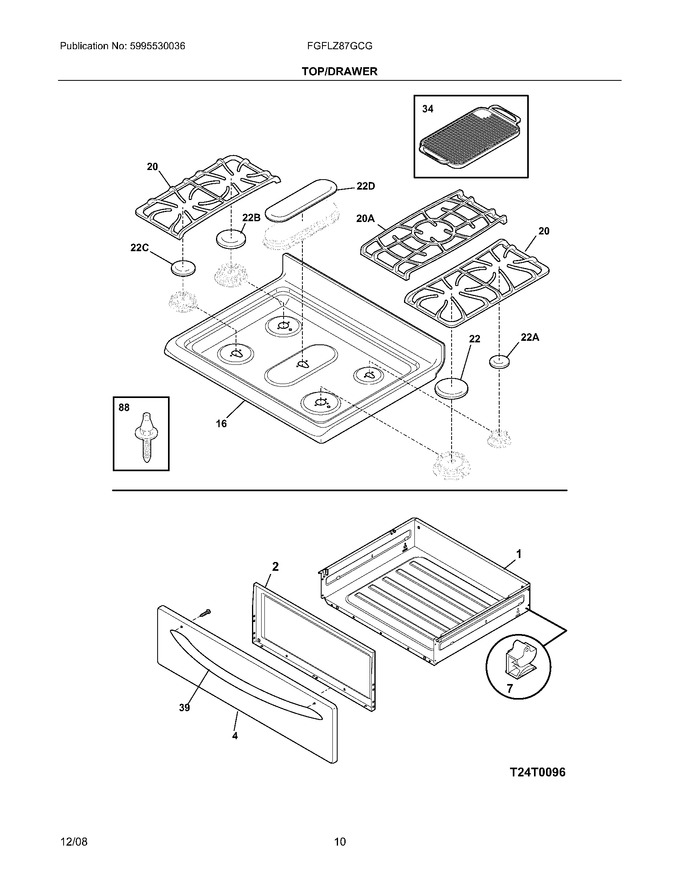

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer,utility (Replaces: 316408703) |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527988 | Liner,drawer (Replaces: 316403200) |
|
Immediately | $ 26.54 | ||||
| 4 | 5304494412 | Panel,drawer ,stainless ,outer (Replaces: 316409312) |
|
$ 98.53 | |||||
| 7 | 316407402 | Glide,drawer ,rear (Replaces: 316407400) |
|
Immediately | $ 9.86 | ||||
| 16 | 316469629 | Maintop Panel,black |
|
$ 217.25 | |||||
| 20 | 316499806 | Grate,black ,(2) (Replaces: 316499502) |
|
$ 354.16 | |||||
| 22 | 5304508468 | Cap-burner,16/17k ,black (Replaces: 316438504) |
|
$ 49.45 | |||||
| 34 | 316499900 | Griddle |
|
$ 114.83 | |||||
| 39 | 316246105 | Handle,door/drawer ,stainless (Replaces: 316246100) |
|
$ 145.31 | |||||
| 88 | 316099500 | Pin,guide ,(2) |
|
$ 6.53 | |||||
| 20A | 316499602 | Grate,black ,center |
|
$ 248.85 | |||||
| 22A | 5304508441 | Cap,5k Burner ,black (Replaces: 316438304) |
|
Immediately | $ 35.04 | ||||
| 22B | 316438104 | Cap,12k-burner ,black |
|
$ 34.81 | |||||
| 22C | 316527704 | Cap,9.5k Burner ,black ,medium |
|
$ 52.24 | |||||
| 22D | 316532103 | Cap,9.5k Burner ,oval ,black ,center |
|
$ 124.85 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
