Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10820036 Switch, Lid (w/o Tub Light)   (Replaces: 205415) In-Stock Immediately $ 27.45

2 211065 Spring, Timer Knob Special Order $ 5.70

3 WP90767 Screw   (Replaces: 211294) In-Stock Immediately $ 7.04

4 211410 Screw, Hex Hd No.8 X 3/8 Inch Special Order $ 6.64

5 212220 Screw-hex Hd Type B No.6 X 15/16 Appelez-nous -
6 213077 Cap For Timer Knob Appelez-nous -
7 WP67006908 Screw-temp. Switch To Panel   (Replaces: 213117) In-Stock Immediately $ 7.16

8 213322 Maytag Decal Appelez-nous -
9 213323 Fastener, Exhaust Duct Kit Appelez-nous -
10 214467 Nut Appelez-nous -
11 00214468 Bracket-left Hand   (Replaces: 214468) Special Order $ 67.91

12 214469 Bracket-right Hand Appelez-nous -
13 Y302454 Timer Appelez-nous -
14 303360 Top Cover-white Appelez-nous -
15 303360A Top Cover-dark Avocado Appelez-nous -
16 303360B Top Cover-dark Coppertone Appelez-nous -
17 303360G Top Cover-dark Gold Appelez-nous -
18 303360L Top Cover-almond Appelez-nous -
19 303360M Top Cover-harvest Wheat Appelez-nous -
20 303360N Top Cover-fresh Avocado Appelez-nous -
21 Y304106 Timer Dial & Knob, Sun-glow Appelez-nous -
22 W11169039 Main Wire Harness   (Replaces: 304448) In-Stock Immediately $ 182.83

24 304470 Temperature Switch Appelez-nous -
25 WP4314961 Control Panel With Overlay   (Replaces: 304573) Special Order $ 80.53

26 Y304585 Timer Motor Rpr Appelez-nous -
27 304647 Timer Motor Appelez-nous -
28 304670 Button Kit Special Order $ 67.52

29 312243 Control Cover-white Appelez-nous -
30 312243B Control Cover-dk Coppertone Appelez-nous -
31 312243G Control Cover-dark Gold Appelez-nous -
32 312243L Control Cover-almond Appelez-nous -
33 312243M Control Cover-harvest Wheat Appelez-nous -
34 312243N Control Cover-fresh Avocado Appelez-nous -
35 312257 Bracket Appelez-nous -
36 312258 Actuator Appelez-nous -
37 W10155650 Nut   (Replaces: 312273) Special Order $ 12.03

38 312303 Spring Appelez-nous -
39 WP488234 Screw   (Replaces: Y313588) Special Order $ 6.07

40 313819 Back-up Plate Appelez-nous -
41 410351 Harness Retainer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

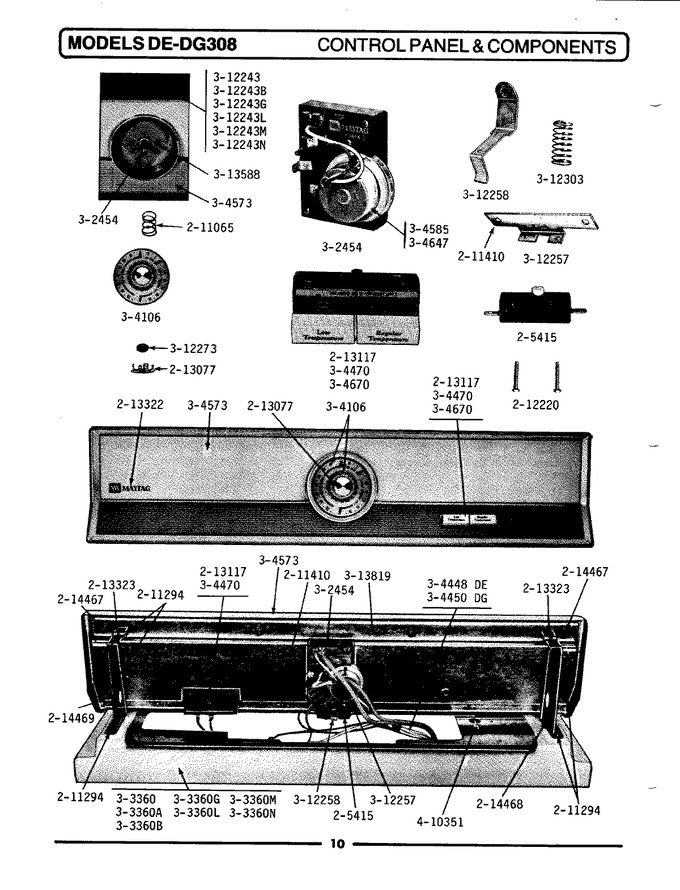

Diagram for DE308
