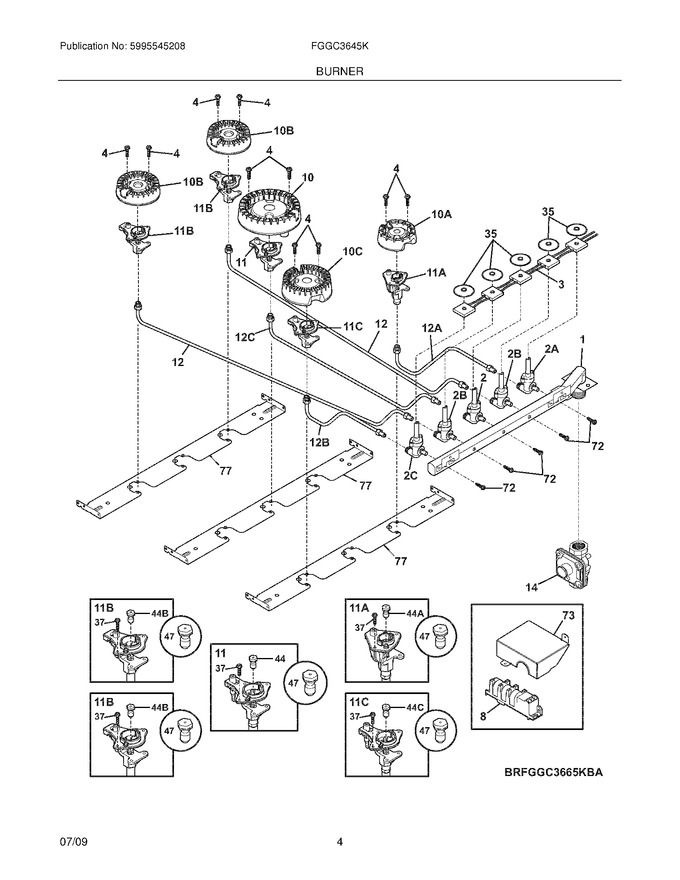

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Maintop
05 - Burners
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318177016 | Manifold Pipe |
|
- | |||||
| 4 | 316240600 | Screw,hex Wash ,6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 12.13 | ||||
| 35 | 318146301 | Bushing |
|
$ 34.34 | |||||
| 37 | 5303288566 | Screw,8 X 1/4 ,(6) (Replaces: 5303323130) |
|
$ 2.12 | |||||
| 72 | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 73 | 318024209 | Deflector,spark Module |
|
$ 21.16 | |||||
| 77 | 318564100 | Bracket,transverse |
|
- | |||||
| 44A | 316527504 | Orifice,top Burner ,5k |
|
$ 22.68 | |||||
| 44B | 316527500 | Orifice,top Burner ,9.5k |
|
$ 21.40 | |||||
| 44C | 316527502 | Orifice,top Burner ,12k |
|
$ 22.68 | |||||
| F10 | 316438400 | Burner,sealed ,16/17k |
|
Immediately | $ 83.42 | ||||
| F10A | 316438200 | Burner,sealed ,5k |
|
Immediately | $ 56.70 | ||||
| F10B | 316558300 | Burner,sealed ,9.5k |
|
Immediately | $ 52.45 | ||||
| F10C | 316438000 | Burner,sealed ,12k |
|
$ 67.81 | |||||
| F11 | 316543203 | Ignitor/orifice Assy.,top Burner ,17k ,w/holder |
|
$ 12.20 | |||||
| F11A | 316540800 | Ignitor/orifice Assy.,top Burner ,5k ,w/holder |
|
$ 11.20 | |||||
| F11B | 316540700 | Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder |
|
$ 11.15 | |||||
| F11C | 316540702 | Ignitor/orifice Assy.,top Burner ,12k ,w/holder |
|
Immediately | $ 12.85 | ||||
| F12 | 318560710 | Tube,burner ,lf & Lr ,(2) |
|
- | |||||
| F12A | 318560712 | Tube,burner ,rr |
|
- | |||||
| F12B | 318560713 | Tube,burner ,rf |
|
- | |||||
| F12C | 318560714 | Tube,burner ,center |
|
- | |||||
| F14 | 318122717 | Regulator,pressure |
|
- | |||||
| F2 | 318233940 | Valve,top Burner ,16/17k |
|
$ 162.23 | |||||
| F2A | 318233900 | Valve,top Burner ,5000 Btu |
|
$ 161.53 | |||||
| F2B | 318233910 | Valve,top Burner ,9500 Btu |
|
$ 132.56 | |||||
| F2C | 318233920 | Valve,top Burner ,12000 Btu |
|
$ 172.94 | |||||
| F3 | 318232621 | Wiring Harness,w/igntr Switch |
|
$ 93.58 | |||||
| F44 | 316527509 | Orifice,top Burner ,17k |
|
$ 19.85 | |||||
| F47 | 318565401 | Conversion Kit,lp |
|
- | |||||
| F8 | 808608804 | Module,spark (Replaces: 318079001) |
|
Immediately | $ 76.06 | ||||
| FNI | 318199780 | Wiring Harness,ignitor |
|
$ 100.56 | |||||
| NI | 5303323140 | Screw,ground ,10-32 X 0.375 |
|
- | |||||
| NI | 5303307980 | Screw,8-32 X 0.437 ,(8) |
|
Immediately | $ 14.18 | ||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303300195 | Screw,10-32 X 0.375 ,(2) |
|
- |
