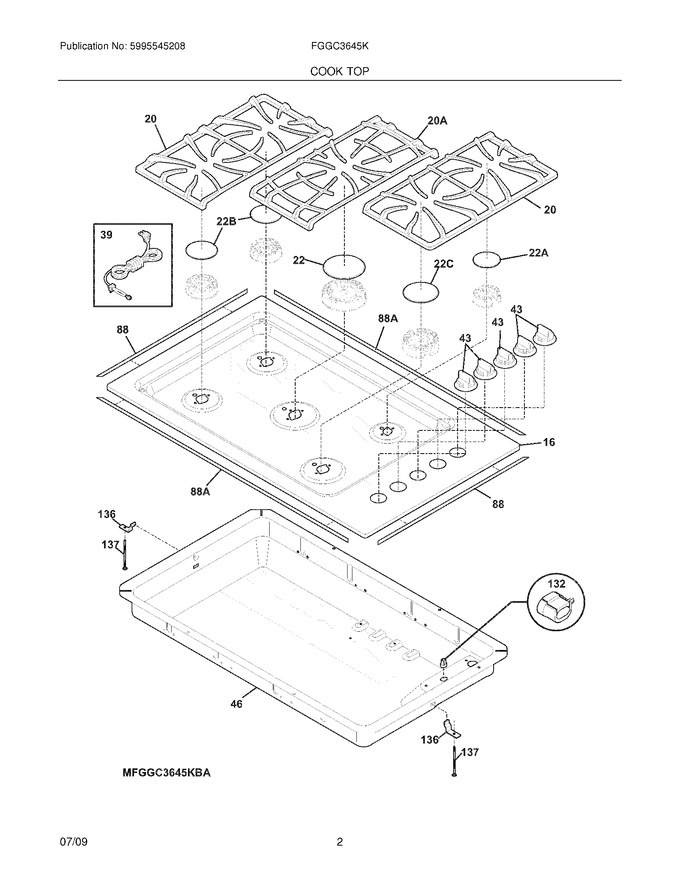

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318560003		Maintop,assembly ,stainless				$ 458.69
20	318560210		Grate,burner ,black ,(2)		Appelez-nous	-
22	5304508468		Cap,16/17k-burner ,black   (Replaces: 316438504)				$ 49.45
39	318144006		Cord,service		Appelez-nous	-
43	316564608		Knob,top Valve ,black				$ 34.86
46	318279006		Box,burner		Appelez-nous	-
88	318280102		Gasket,cooktop ,21.48`` ,sides ,(2)   (Replaces: 318280101)				$ 59.12
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support,box ,(2)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
20A	318560440		Grate,black ,center				$ 243.63
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316438304)			Immediately	$ 35.04
22B	316527704		Cap,9.5k Burner ,black ,medium ,(2)				$ 52.24
22C	316438104		Cap,12k-burner ,black				$ 34.81
88A	318280102		Gasket,cooktop ,35.78`` ,front/back ,(2)				$ 59.12
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 5303323168)				$ 31.36
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
