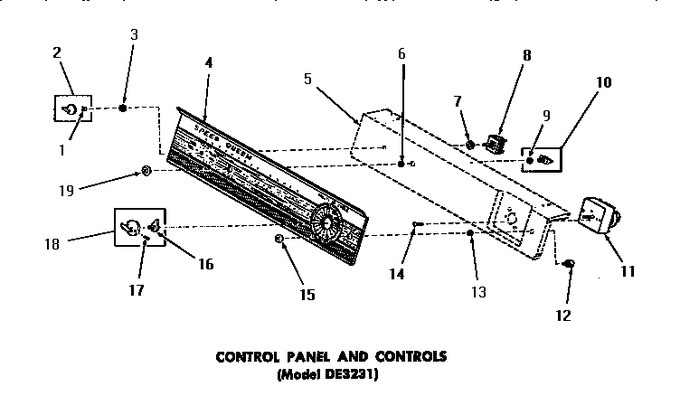

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23392		Clip For 26816 Knob		Appelez-nous	-
2	23402		Knob,control		Appelez-nous	-
3	24391		Knurled Nut		Appelez-nous	-
4	52917		Control Panel		Appelez-nous	-
5	Y00000000		See Note Panel Support Plate		Appelez-nous	-
6	23406		Knurled Nut		Appelez-nous	-
7	91176		Lockwasher,3/8 Intshkp				$ 1.44
8	52623		Switch,fabric Selector		Appelez-nous	-
9	Sub. To D513506		Nut,hex 15/32-32   (Replaces: 52947)		Appelez-nous	-
10	52563		Push-to-start Switch Assembly		Appelez-nous	-
11	52610		Timer		Appelez-nous	-
12	23401		Switch		Appelez-nous	-
13	23400		Ferrule		Appelez-nous	-
14	70212		Screw,8-32 X 5/32 Rd H		Appelez-nous	-
15	23399		Switch Collar		Appelez-nous	-
16	24857		Indicator		Appelez-nous	-
17	25285		Setscrew		Appelez-nous	-
18	24858		Assy,knob-timer		Appelez-nous	-
19	23130		Switch Collar		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
