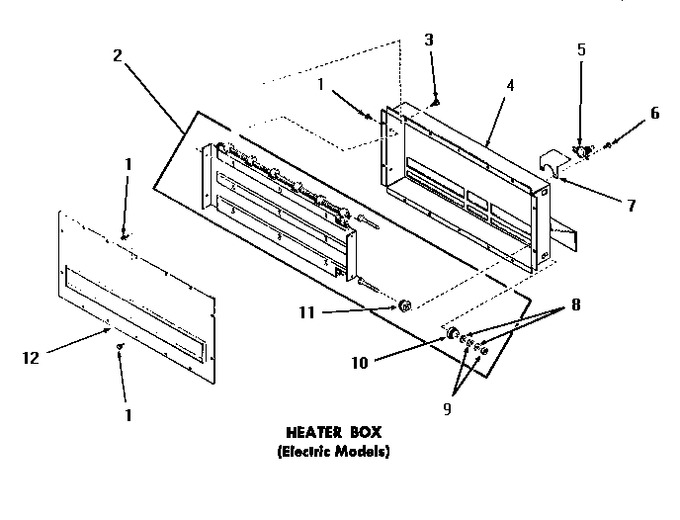

13 - Heater Box


14 - Loading Door


15 - Loading Door


16 - Motor, Idler & Belt


17 - Panels


18 - Rear Frame & Frame Base


19 - Wire & Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3390631		Hex Head Screw   (Replaces: 51780)				$ 7.04
2	52306		Element,heater-208v		Appelez-nous	-
2	Y52626		Element,heater-240v		Appelez-nous	-
2	52608		Element,heater-230v		Appelez-nous	-
3	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
4	Y51876		Heater Box And Shield		Appelez-nous	-
5	55523		Thermostat		Appelez-nous	-
6	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
7	52117		Thermostat Shield		Appelez-nous	-
8	54532		Washer		Appelez-nous	-
9	54531		Nut		Appelez-nous	-
10	5300063521		Insulator   (Replaces: 51145)				$ 1.17
11	5300063521		Insulator   (Replaces: 51146)				$ 1.17
12	51867		Heater Box Cover Plate		Appelez-nous	-
