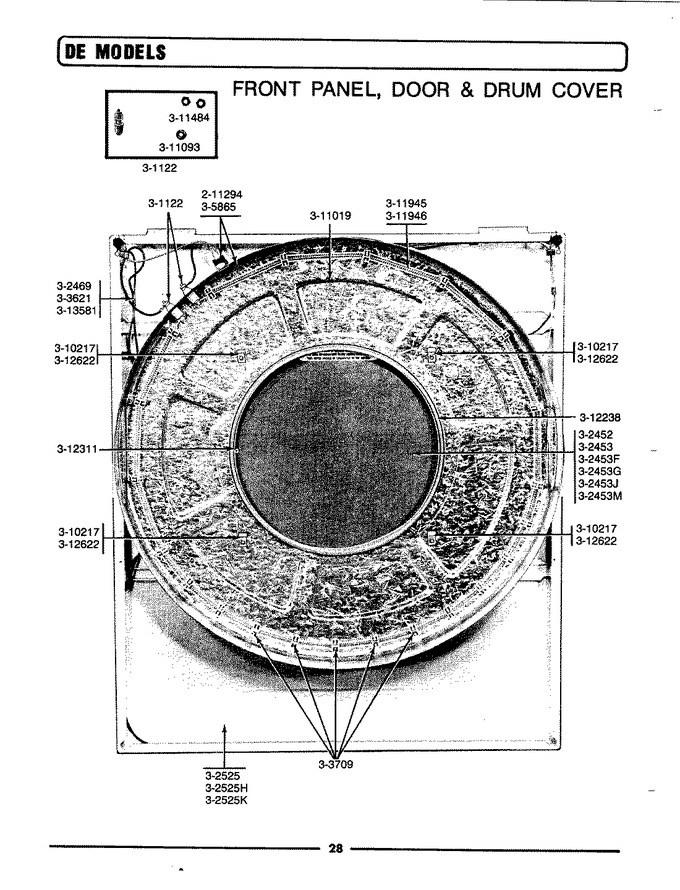

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 2 | Y304596 | Terminal Post (Replaces: 301122) | 00 |
|
Immediately | $ 22.97 | |||
| 3 | 302452 | Door Liner | 00 |
|
- | ||||
| 4 | 302453 | Door-white | 00 |
|
- | ||||
| 5 | 302453F | Door-light Gold | 00 |
|
- | ||||
| 6 | 302453G | Door-dark Gold | 00 |
|
- | ||||
| 7 | 302453J | Door-light Avocado | 00 |
|
- | ||||
| 8 | 302453M | Door-harvest Wheat | 00 |
|
- | ||||
| 9 | 302469 | Harness For Shroud | 00 |
|
- | ||||
| 10 | 302525 | Front Panel-white | 00 |
|
- | ||||
| 11 | 302525H | Front Panel-shaded Gold | 00 |
|
- | ||||
| 12 | 302525K | Front Panel-shaded Avocado | 00 |
|
- | ||||
| 14 | 303709 | Clip And Insulator Assembly | 00 |
|
$ 5.22 | ||||
| 15 | 305865 | High Limit Thermostat | 00 |
|
$ 47.01 | ||||
| 16 | 310217 | No Longer Available | 00 |
|
- | ||||
| 17 | 311019 | Drum Cover | 00 |
|
- | ||||
| 18 | WP311093 | Washer, 7/32 Inch (Replaces: 311093) | 00 |
|
$ 7.25 | ||||
| 19 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 00 |
|
$ 7.16 | ||||
| 20 | Y311945 | Heater Wire 208 Volt | 00 |
|
- | ||||
| 21 | Y311946 | Heater Wire 240 Volt | 00 |
|
$ 55.28 | ||||
| 22 | 312238 | Door Seal | 00 |
|
- | ||||
| 23 | 312311 | Screw----na | 00 |
|
- | ||||
| 24 | 312622 | Screw, No.10-16 X 1/2 Inch | 00 |
|
- | ||||
| 25 | 313581 | Sleeve For Door Wires | 00 |
|
- |
