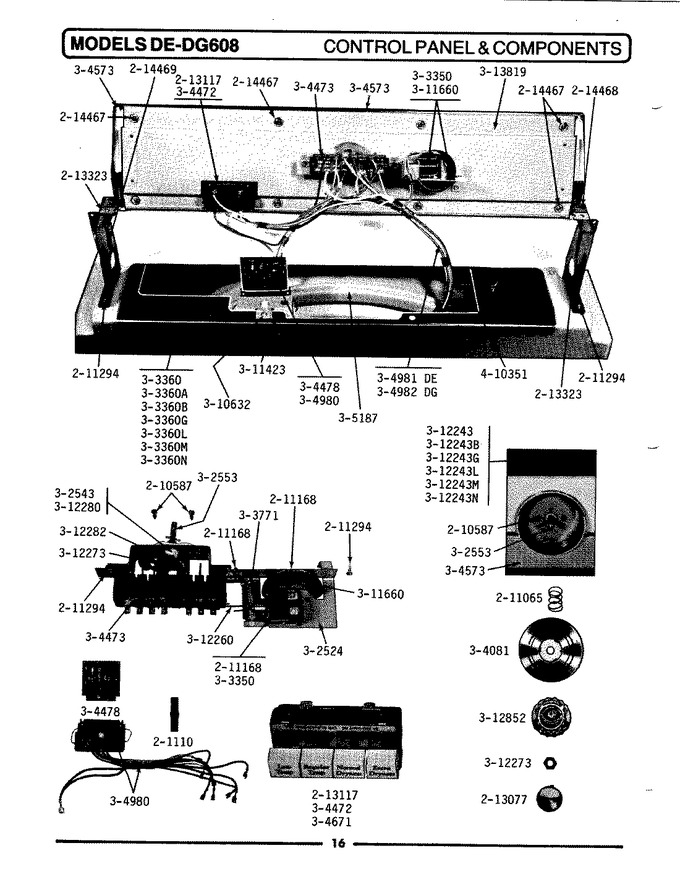

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP75614 | Wire Connector (Replaces: 201110) |
|
$ 44.41 | |||||
| 2 | WP90767 | Screw (Replaces: 210587) |
|
Immediately | $ 7.04 | ||||
| 3 | 211065 | Spring, Timer Knob |
|
$ 5.70 | |||||
| 4 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) |
|
$ 6.75 | |||||
| 5 | WP90767 | Screw (Replaces: 211294) |
|
Immediately | $ 7.04 | ||||
| 6 | 213077 | Cap For Timer Knob |
|
- | |||||
| 7 | WP67006908 | Screw-temp. Switch To Panel (Replaces: 213117) |
|
Immediately | $ 7.16 | ||||
| 8 | 213322 | Maytag Decal |
|
- | |||||
| 9 | 213323 | Fastener, Exhaust Duct Kit |
|
- | |||||
| 10 | 214467 | Nut |
|
- | |||||
| 11 | 00214468 | Bracket-left Hand (Replaces: 214468) |
|
$ 67.91 | |||||
| 12 | 214469 | Bracket-right Hand |
|
- | |||||
| 13 | 302524 | Bracket |
|
- | |||||
| 14 | Y302543 | Spring Assembly |
|
- | |||||
| 15 | 302553 | Shaft |
|
- | |||||
| 16 | Y303350 | Solenoid |
|
- | |||||
| 17 | 303360 | Top Cover-white |
|
- | |||||
| 18 | 303360A | Top Cover-dark Avocado |
|
- | |||||
| 19 | 303360B | Top Cover-dark Coppertone |
|
- | |||||
| 22 | 303360M | Top Cover-harvest Wheat |
|
- | |||||
| 23 | 303360N | Top Cover-fresh Avocado |
|
- | |||||
| 24 | Y303771 | Chime Actuator Assembly |
|
- | |||||
| 25 | 304081 | Timer Dial |
|
- | |||||
| 26 | 304472 | Temperature Switch |
|
- | |||||
| 27 | Y304473 | Control Switch |
|
- | |||||
| 28 | Y304478 | Printed Circuit Board Assm. |
|
- | |||||
| 29 | WP4314961 | Control Panel With Overlay (Replaces: 304573) |
|
$ 80.53 | |||||
| 30 | Y304671 | Button Kit |
|
- | |||||
| 31 | 304980 | Edgeboard Connector Assembl |
|
- | |||||
| 32 | 304981 | Main Wire Harness |
|
- | |||||
| 34 | 305187 | Tumbler |
|
- | |||||
| 35 | Y310632 | Screw |
|
- | |||||
| 36 | WP489483 | Screw, No.10-32 X 1/2 Inch (Replaces: Y311423) |
|
$ 9.78 | |||||
| 37 | Y311660 | Chime |
|
- | |||||
| 38 | 312243 | Control Cover-white |
|
- | |||||
| 39 | 312243B | Control Cover-dk Coppertone |
|
- | |||||
| 40 | 312243G | Control Cover-dark Gold |
|
- | |||||
| 41 | 312243L | Control Cover-almond |
|
- | |||||
| 42 | 312243M | Control Cover-harvest Wheat |
|
- | |||||
| 43 | 312243N | Control Cover-fresh Avocado |
|
- | |||||
| 44 | Y312260 | Link |
|
- | |||||
| 45 | W10155650 | Nut (Replaces: 312273) |
|
$ 12.03 | |||||
| 46 | Y312280 | Bearing |
|
- | |||||
| 47 | 1043276 | Plate (Replaces: 312282) |
|
Immediately | $ 680.00 | ||||
| 48 | 312852 | Selector Knob-clear Acrylic |
|
$ 23.60 | |||||
| 49 | 313819 | Back-up Plate |
|
- | |||||
| 50 | 410351 | Harness Retainer |
|
- |
