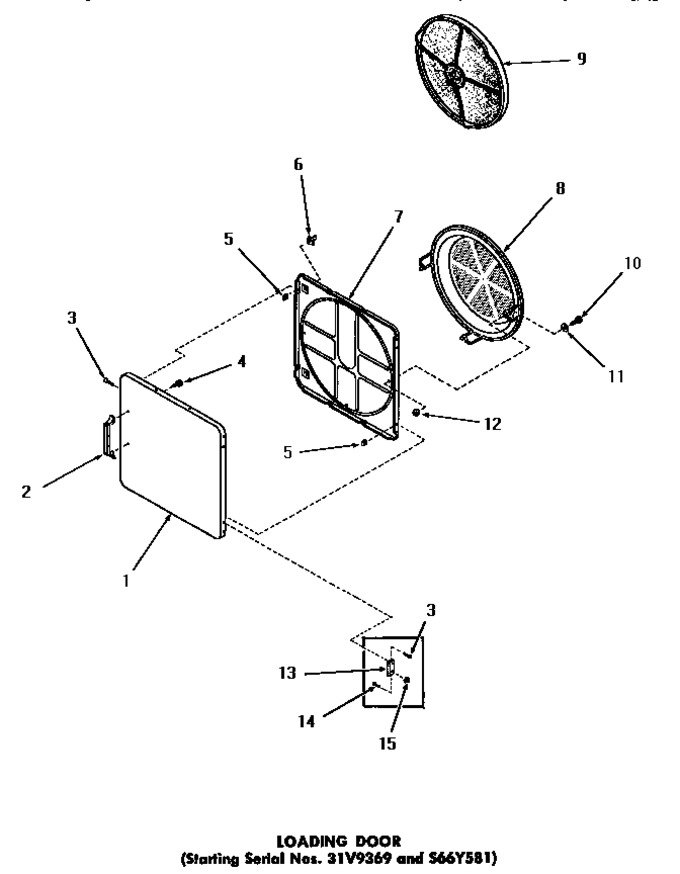

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52489W		Outer Door Panel, White		Appelez-nous	-
1	52489H		Outer Door Panel, Harvest Gold		Appelez-nous	-
1	52489C		Outer Door Panel, Coppertone		Appelez-nous	-
1	52489A		Outer Door Panel, Avocado		Appelez-nous	-
2	54068		Pull,door		Appelez-nous	-
3	Sub. To D512973		Screw, 8b-16x5/8 Tap   (Replaces: 52864)		Appelez-nous	-
4	52150		Screw, Thermostat		Appelez-nous	-
5	52865		Speed Nut		Appelez-nous	-
6	LA-1003		Strike, Door (metal)   (Replaces: 54661)			Immediately	$ 24.51
7	54665		Inner Door Panel		Appelez-nous	-
8	54731		Assy,grill&support-pur		Appelez-nous	-
9	53002		No Longer Available		Appelez-nous	-
10	24688		Cap Screw		Appelez-nous	-
11	Q6275		Washer		Appelez-nous	-
12	WPW10139757		Nut, Hex Jam 1/4-20l   (Replaces: 52566)				$ 7.16
13	70014		Hinge (comml. Part)		Appelez-nous	-
14	22649		Screw,8-32 X 13/32 Fl		Appelez-nous	-
15	Sub. To 807429P		Nut K   (Replaces: 51236)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
