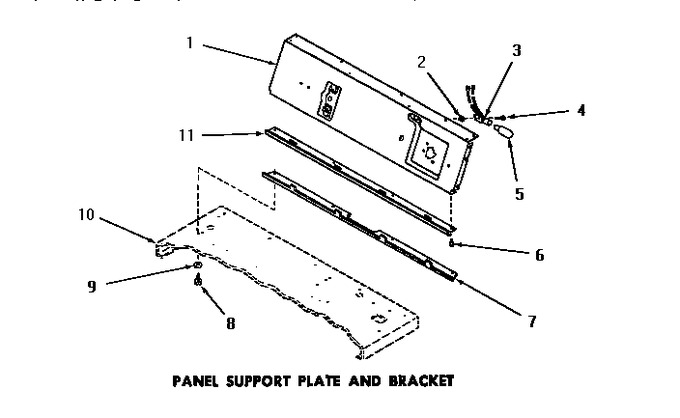

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0054750		Door Frame		Appelez-nous	-
1	53628		Panel Support Plate		Appelez-nous	-
2	22378		Nut		Appelez-nous	-
3	Y22368		Bulb Receptacle		Appelez-nous	-
4	20268		Screw,8-32 X 1/4 Rd Hd		Appelez-nous	-
5	21608		Bulb				$ 111.49
6	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
7	52912		Panel Support Bracket		Appelez-nous	-
8	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
9	20493		Washer,11/64idx3/8odx3		Appelez-nous	-
10	Y00000000		See Note Cabinet Top		Appelez-nous	-
11	Y52929		Panel Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
