New Model Search:

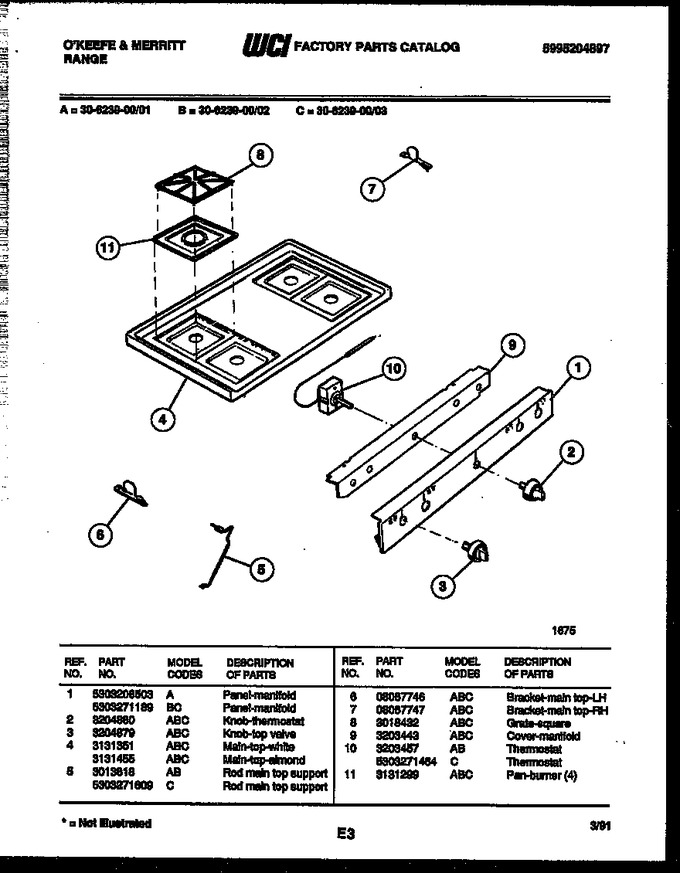

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200673 | Brkt-broiler Hng (lh) |
|
- | |||||
| 1 | 5303271189 | Panel-manifold |
|
- | |||||
| 2 | 3204880 | Knob-thermostat |
|
- | |||||
| 3 | 3204879 | Knob - Top Valve |
|
- | |||||
| 4 | 3131351 | Main Top,white |
|
- | |||||
| 4 | 3131455 | Main Top, Almond |
|
- | |||||
| 5 | 3013818 | Rod, Main Top Support |
|
- | |||||
| 6 | 08067746 | Bracket, Main Top, Lh |
|
- | |||||
| 7 | 08067747 | Bracket, Main Top, Rh |
|
- | |||||
| 8 | 3018432 | Grate Square |
|
- | |||||
| 9 | 3203443 | Cover-manifold |
|
- | |||||
| 10 | 3203457 | Thermostat |
|
- | |||||
| 11 | 3131299 | Pan-burner (4) |
|
- |
