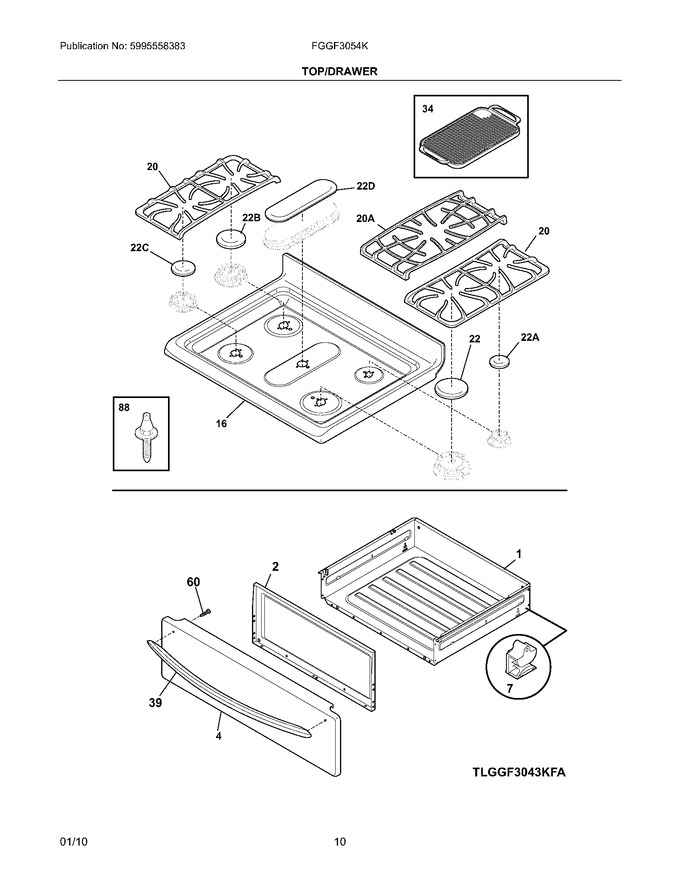

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527988		Liner,drawer   (Replaces: 316403200)			Immediately	$ 26.54
4	316403405		Panel,drawer ,white ,front				$ 89.83
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316469654		Maintop Panel,white				$ 428.51
20	316499806		Grate,black ,(2)   (Replaces: 316499502)				$ 354.16
22	5304508468		Cap,16/17k-burner ,black   (Replaces: 316438504)				$ 49.45
34	316499900		Griddle				$ 114.83
39	316554001		Handle,door/drawer ,white				$ 182.02
60	5303288572		Screw-handle Mtg		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
20A	316499806		Grate,center ,black   (Replaces: 316551802)				$ 354.16
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316438304)			Immediately	$ 35.04
22B	316438704		Cap,14k Burner ,black				$ 69.03
22C	316527704		Cap,9.5k Burner ,black ,medium ,(2)				$ 52.24
22D	316532103		Cap,9.5k Burner ,oval ,black ,center				$ 124.85
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
