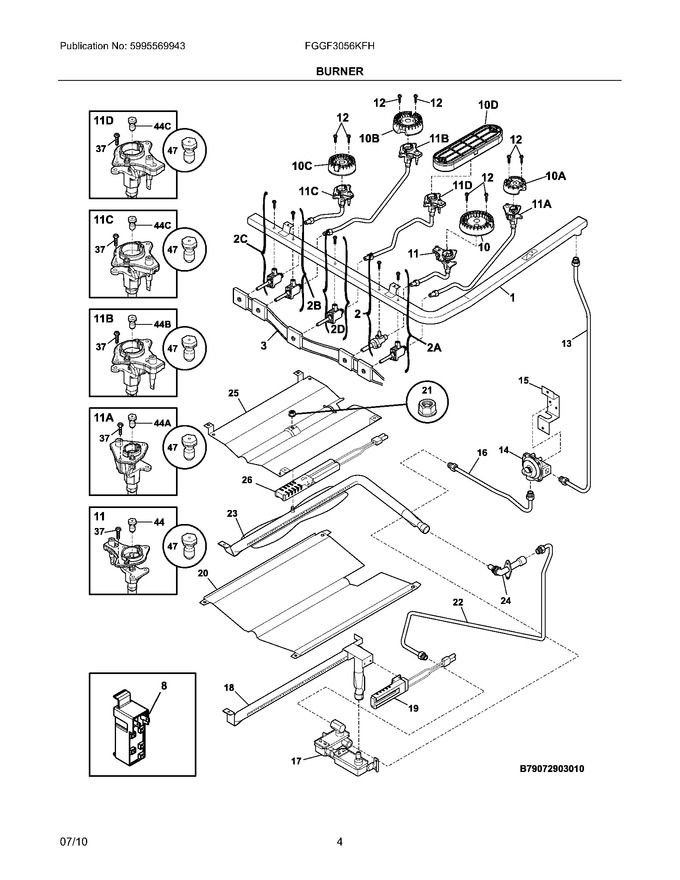

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	316540900		Screw,burner ,head Mtg ,(8)			Immediately	$ 15.17
15	316091600		Bracket-regulator				$ 73.56
20	5304519024		Baffle,oven Burner   (Replaces: 316401401)			Immediately	$ 80.39
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
25	316401301		Baffle,broil Burner				$ 173.57
37	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 12.13
2B	5303935307		Valve,14k Top Burner ,w/mtg Screw				$ 90.72
F1	316551202		Manifold,pipe				$ 132.77
F10	316438400		Burner,sealed ,16/17k			Immediately	$ 83.42
F10A	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10C	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10D	316559300		Burner,sealed ,oval				$ 177.19
F11	316536622		Ignitor/orifice Assy .,,top Burner ,right Front,17k ,w/tube & Holder				$ 178.08
F11A	316536610		Ignitor/orifice Assy.,top Burner ,right Rear,5k ,w/holder ,tube			Immediately	$ 92.38
F11B	316536618		Ignitor/orifice Assy.,top Burner ,left Rear,15k ,w/holder ,tube			Immediately	$ 163.30
F11C	316536602		Ignitor/orifice Assy.,top Burner ,left Front,9.5k ,w/holder ,tube				$ 132.62
F11D	316536623		Ignitor/orifice Assy.,top Burner ,center,9.5k ,w/holder & Tube				$ 147.71
F13	316545700		Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings				$ 148.58
F14	5304521339		Regulator,pressure   (Replaces: 316091706)			Immediately	$ 105.42
F16	5304507348		Tube-valve To Rgltr,3/8   (Replaces: 316431000)			Immediately	$ 47.03
F17	316404901		Valve,safety				$ 365.72
F18	316404400		Burner,oven				$ 109.10
F19	5304506545		Ignitor,broil Burner   (Replaces: 316489404)			Immediately	$ 94.21
F2	5303935233		Valve,17k Burner ,w/mtg Screw				$ 64.24
F22	5304507768		Tube-valve To Mixer   (Replaces: 316537100)				$ 50.06
F23	316404304		Burner,broiler				$ 84.39
F24	5304516894		Elbow,mixer   (Replaces: 316409700)				$ 87.21
F26	316489403		Ignitor,bake Burner			Immediately	$ 113.15
F2A	5303935308		Valve,5k Top Burner ,w/mtg Screw				$ 70.88
F2C	5303935305		Valve,9.5k Burner ,w/mtg Screw			Immediately	$ 77.26
F2D	5303935309		Valve-top Burner,tortilla				$ 82.22
F3	316580614		Wiring Harness,w/ignitor Swtch				$ 98.09
F44	316527509		Orifice,top Burner ,17k				$ 19.85
F44A	316527504		Orifice,top Burner ,5k				$ 22.68
F44B	316527513		Orifice,top Burner ,14k				$ 22.05
F44C	316527500		Orifice,top Burner ,9.5k				$ 21.40
F47	GRLP3		Lp Conversion Kit,w/instructions				$ 57.11
F8	5304508269		Module,spark   (Replaces: 316262400)			Immediately	$ 105.46
NI	316417518		Instructions,lp Conversion		Appelez-nous	-
NI	5304494425		Harness-ignitor   (Replaces: 316580602)				$ 86.45
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316257400		Bracket,spark Module				$ 15.17
NI	241500305		Screw,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
NI	316401500		Cover,broil Ignitor				$ 12.89
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
