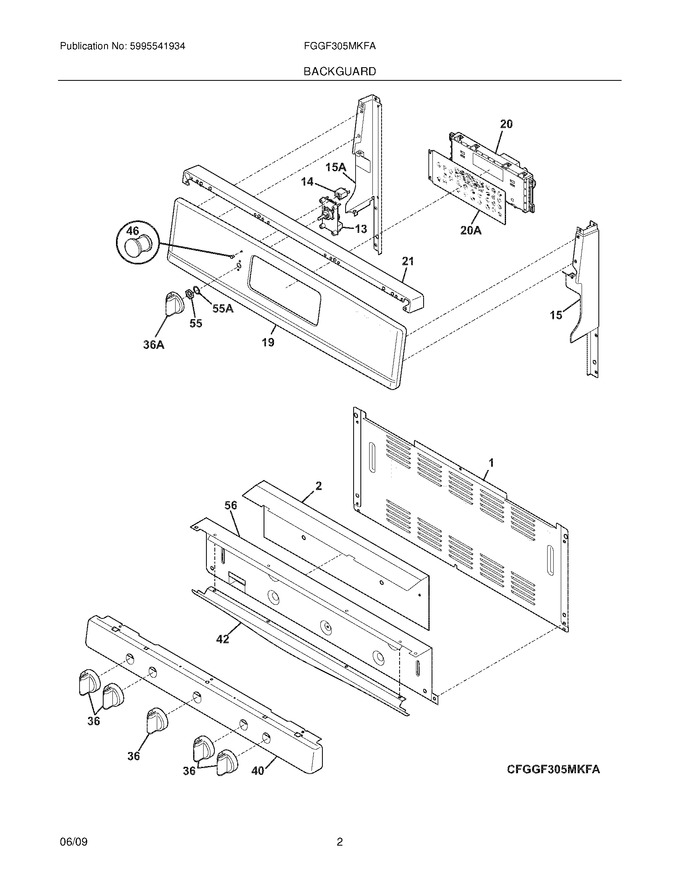

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield,rear Wall				$ 70.04
2	316497601		Shield,backguard ,inner				$ 49.40
13	316414406		Control,bake ,mini Oven				$ 206.61
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316546702		Cap,backguard ,black ,rh End				$ 52.55
19	316572415		Panel,backguard ,stainless		Appelez-nous	-
21	316546605		Cap,backguard ,black ,top   (Replaces: 316546601)				$ 66.91
36	316564506		Knob,top Valve ,stainless ,(5)				$ 104.48
40	316249044		Panel,manifold ,stainless Steel				$ 120.28
42	316416204		Trim,extrusion ,black   (Replaces: 316416200)				$ 43.99
46	316557300		Lens-light/lamp,indicator ,clear			Immediately	$ 16.77
55	316247700		Nut,mounting				$ 18.20
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316546703		Cap,backguard ,black ,lh End				$ 64.47
36A	316564408		Knob,control ,stainless ,mini Oven				$ 119.23
55A	316247800		Washer,lock ,mtg				$ 18.20
F20	316560161		Controller,electronic ,es540l		Appelez-nous	-
F20A	316419819		Overlay,clock ,black ,es540l		Appelez-nous	-
FNI	316525611		Harness,mini Oven ,control		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
