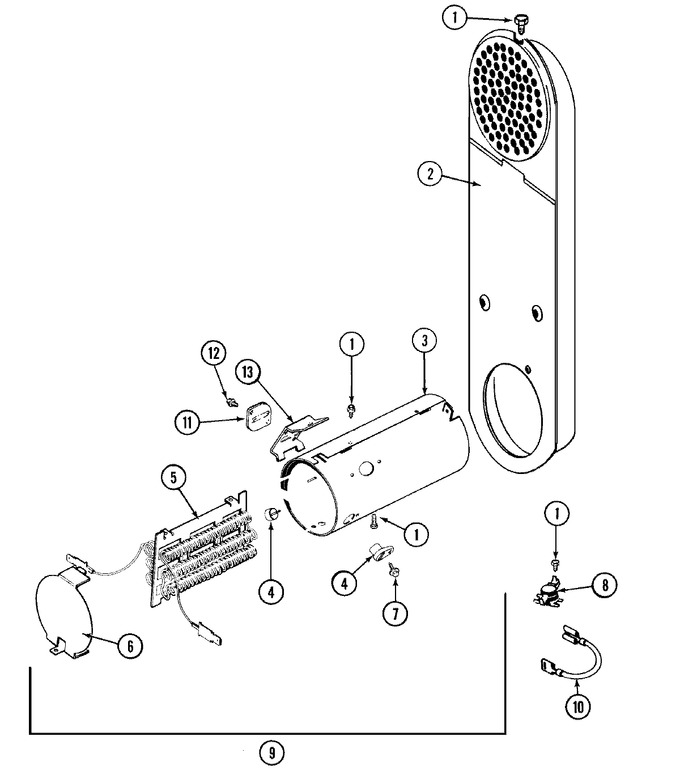

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw   (Replaces: 211294)	A3		Immediately	$ 7.04
2	307120		Inlet Duct Assy.	A3	Appelez-nous	-
3	314995		Heater Enclosure	A3	Appelez-nous	-
4	314998		Insulator, Terminal	A3			$ 18.77
5	WPY308612		Heater Sub-assembly (240v)   (Replaces: 307184)	A3		Immediately	$ 260.46
5	WP308614		Heater Sub-assembly (240v)   (Replaces: 307185)	A3			$ 326.97
6	314999		Shield, Radiant	A3	Appelez-nous	-
7	314554		Screw	A3	Appelez-nous	-
8	308217		Thermostat,hi-limit(canada)	A3	Appelez-nous	-
8	WP303396		Thermostat, Hi-limit (elec)   (Replaces: 303396)	A3		Immediately	$ 44.02
9	WP307178		Heater Assembly(complete 240v)   (Replaces: 307178)	A3			$ 369.81
10	WPY307173		Wire, Jumper   (Replaces: Y307173)	A3			$ 6.47
11	WP307473		Fuse, Thermal   (Replaces: 307473)	A3		Immediately	$ 55.22
12	WP90767		Screw   (Replaces: 314848)	A3		Immediately	$ 7.04
13	315346		Bracket, Thermal Fuse	A3	Appelez-nous	-
