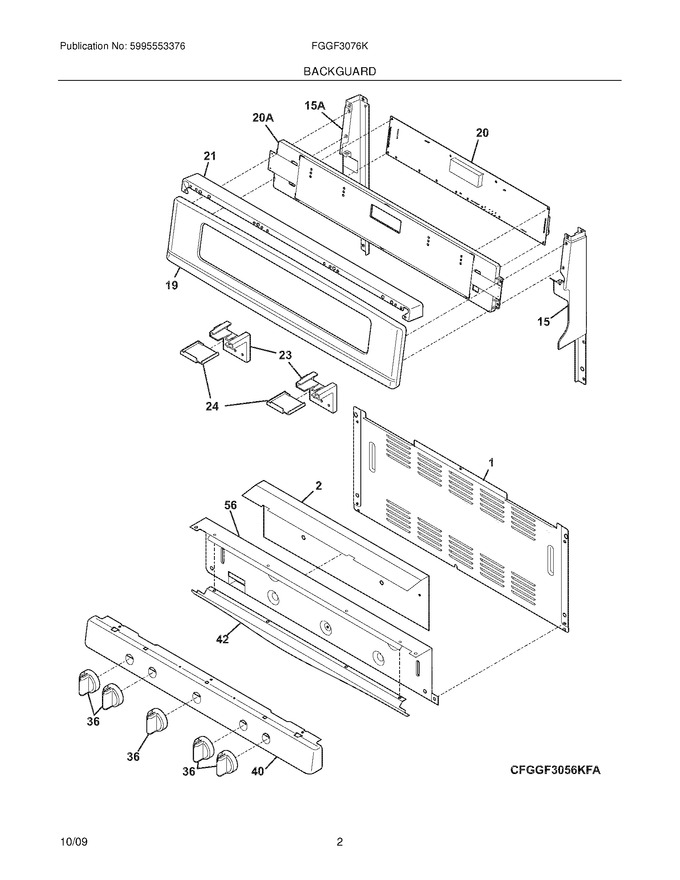

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield,rear Wall				$ 70.04
2	316497600		Shield,backguard ,inner				$ 66.31
15	316546702		Cap,backguard ,black ,rh End				$ 52.55
19	316572401		Panel,backguard ,black				$ 188.21
21	316546605		Cap,backguard ,black ,top   (Replaces: 316546601)				$ 66.91
23	316573700		Bracket,support ,bottom ,(2) ,membrane		Appelez-nous	-
24	316574200		Bracket,support ,top ,(2) ,membrane				$ 17.64
36	316564506		Knob,top Valve ,stainless ,(5)				$ 104.48
40	316447390		Panel,manifold ,black		Appelez-nous	-
42	316416204		Trim,extrusion ,black   (Replaces: 316416200)				$ 43.99
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316546703		Cap,backguard ,black ,lh End				$ 64.47
F20	316562001		Controller,electronic ,es1000		Appelez-nous	-
F20A	316549106		Membrane,touch Control ,black ,assembly				$ 271.89
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
