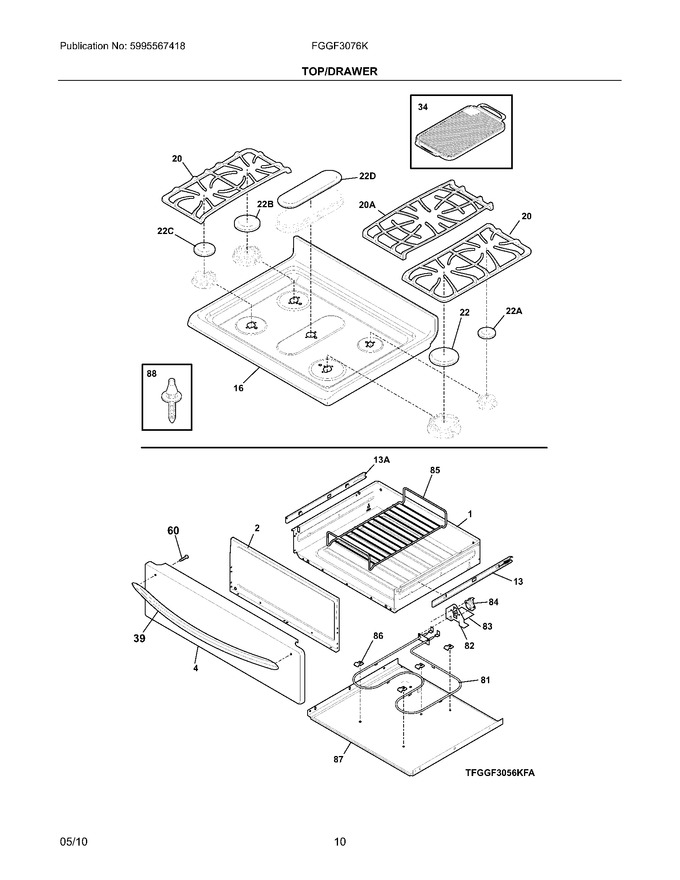

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408905 | Drawer,warmer (Replaces: 316408901) |
|
$ 143.45 | |||||
| 2 | 5304527988 | Liner,black ,drawer (Replaces: 316403203) |
|
Immediately | $ 26.54 | ||||
| 4 | 316403406 | Panel,drawer ,black ,front |
|
$ 83.69 | |||||
| 13 | 316415000 | Glide,warmer ,inner Rh |
|
$ 58.82 | |||||
| 16 | 316469653 | Maintop Panel,black |
|
$ 510.98 | |||||
| 20 | 316499806 | Grate,black ,(2) (Replaces: 316499502) |
|
$ 354.16 | |||||
| 22 | 5304508468 | Cap,burner ,17k ,black (Replaces: 316262104) |
|
$ 49.45 | |||||
| 34 | 316499900 | Griddle |
|
$ 114.83 | |||||
| 39 | 316554010 | Handle,door/drawer ,stainless (Replaces: 316554005) |
|
Immediately | $ 168.44 | ||||
| 60 | 316433303 | Screw,handle Mtg. ,10-24 X 1.75`` ,(2) (Replaces: 316439500) |
|
Immediately | $ 31.17 | ||||
| 82 | 316093200 | Bracket,element Mtg |
|
- | |||||
| 83 | 316093300 | Shield,terminal ,warmer Drawer |
|
- | |||||
| 84 | 316093502 | Thermo Disc,warmer Drawer |
|
$ 51.03 | |||||
| 85 | 807328301 | Rack,warmer Drawer (Replaces: 316425900) |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip,hold Down ,warmer Element |
|
$ 9.93 | |||||
| 87 | 316091900 | Base,warmer Drawer |
|
$ 221.55 | |||||
| 88 | 316099500 | Pin,guide ,(2) |
|
$ 6.53 | |||||
| 13A | 316415001 | Glide,warmer ,inner Lh |
|
Immediately | $ 58.82 | ||||
| 20A | 316499806 | Grate,center ,black (Replaces: 316551802) |
|
$ 354.16 | |||||
| 22A | 5304508441 | Cap,5k Burner ,black (Replaces: 316261704) |
|
Immediately | $ 35.04 | ||||
| 22B | 5304508443 | Cap,14k Burner ,black (Replaces: 316262004) |
|
Immediately | $ 46.01 | ||||
| 22C | 5304508442 | Cap,9.5k Burner ,black ,(2) (Replaces: 316261804) |
|
Immediately | $ 36.55 | ||||
| 22D | 316532103 | Cap,9.5k Burner ,oval ,black ,center |
|
$ 124.85 | |||||
| F81 | 316437300 | Element,warmer Drawer |
|
$ 106.17 | |||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5304516184 | Harness,warm Base (Replaces: 316525623) |
|
$ 28.51 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 |
