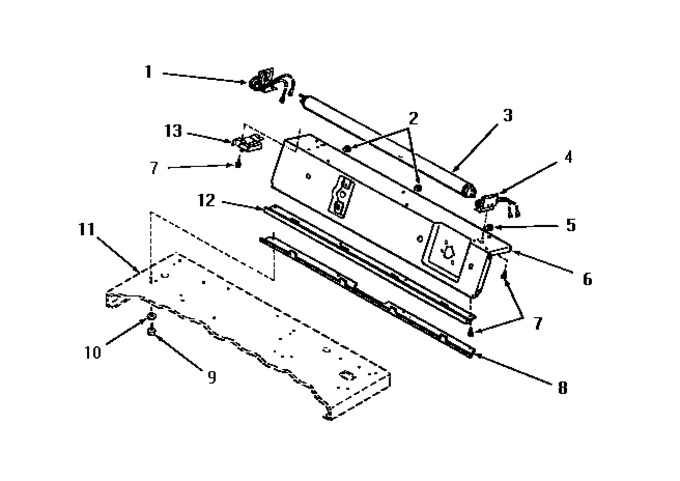

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23398		Fluorescent Tube Holder, Left		Appelez-nous	-
2	21176		Bumper		Appelez-nous	-
3	24442		No Longer Available		Appelez-nous	-
4	23397		Fluorescent Tube Holder, Right		Appelez-nous	-
5	21176		Bumper		Appelez-nous	-
6	53438		Panel Support Plate		Appelez-nous	-
7	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
8	52912		Panel Support Bracket		Appelez-nous	-
9	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
10	20493		Washer,11/64idx3/8odx3		Appelez-nous	-
11	Y00000000		See Note Cabinet Top		Appelez-nous	-
12	Y52929		Panel Trim		Appelez-nous	-
13	21975		Ballast		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
