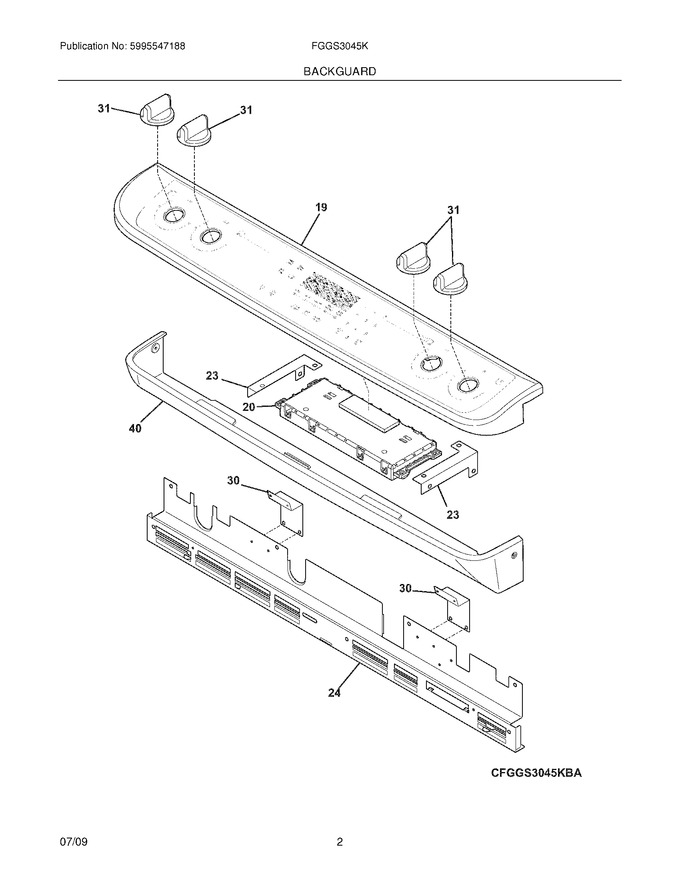

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	318921300		Bracket,control Mtg ,(2)				$ 17.64
24	318913101		Trim,vent ,black ,upper				$ 87.89
30	318928502		Bracket,control Panel ,rear ,(2)   (Replaces: 318928500)				$ 15.60
31	316564410		Knob,control ,black				$ 50.09
40	318912905		Panel,service ,black				$ 301.40
F19	318922130		Panel Assembly,control ,black ,w/overlay		Appelez-nous	-
F20	316560141		Controller,electronic ,es530w0				$ 331.96
FNI	318224847		Harness,wiring ,timer		Appelez-nous	-
NI	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8   (Replaces: 5304454881)				$ 10.02
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
