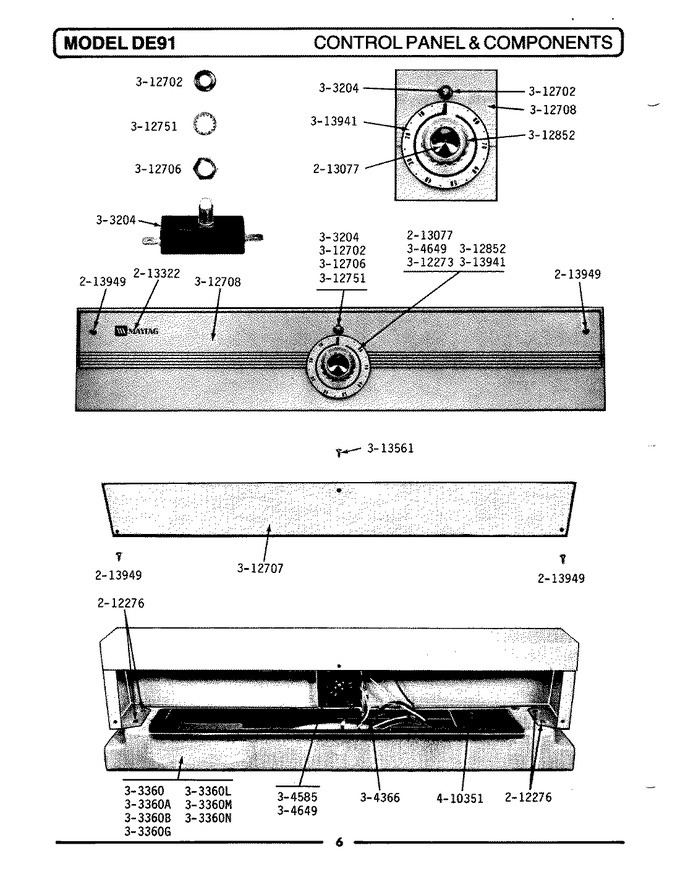

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 2 | 213077 | Cap For Timer Knob | 00 |
|
- | ||||
| 3 | 213322 | Maytag Decal | 00 |
|
- | ||||
| 4 | WP355214 | Screw, No.8-18 X 5/16 Inch (Replaces: 213949) | 00 |
|
Immediately | $ 7.26 | |||
| 5 | Y303204 | Start Switch With Nuts | 00 |
|
- | ||||
| 6 | 303360 | Top Cover-white | 00 |
|
- | ||||
| 7 | 303360A | Top Cover-dark Avocado | 00 |
|
- | ||||
| 8 | 303360B | Top Cover-dark Coppertone | 00 |
|
- | ||||
| 9 | 303360G | Top Cover-dark Gold | 00 |
|
- | ||||
| 10 | 303360L | Top Cover-almond | 00 |
|
- | ||||
| 11 | 303360M | Top Cover-harvest Wheat | 00 |
|
- | ||||
| 12 | 303360N | Top Cover-fresh Avocado | 00 |
|
- | ||||
| 13 | 304366 | Main Wire Harness | 00 |
|
- | ||||
| 14 | Y304585 | Timer Motor Rpr | 00 |
|
- | ||||
| 15 | Y304649 | Timer Rpr | 00 |
|
- | ||||
| 16 | W10155650 | Nut (Replaces: 312273) | 00 |
|
$ 12.03 | ||||
| 17 | Y312702 | Knurled Nut | 00 |
|
$ 18.18 | ||||
| 18 | Y312706 | Hex Nut On Switch | 00 |
|
- | ||||
| 19 | 312707 | Back Cover For 3-3097 | 00 |
|
- | ||||
| 20 | 312708 | Control Panel | 00 |
|
- | ||||
| 21 | WPW10139799 | Lock Washer (Replaces: 312751) | 00 |
|
$ 8.32 | ||||
| 22 | 312852 | Selector Knob-clear Acrylic | 00 |
|
$ 23.60 | ||||
| 23 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| 24 | 313941 | Timer Dial | 00 |
|
- | ||||
| 25 | 410351 | Harness Retainer | 00 |
|
- |
