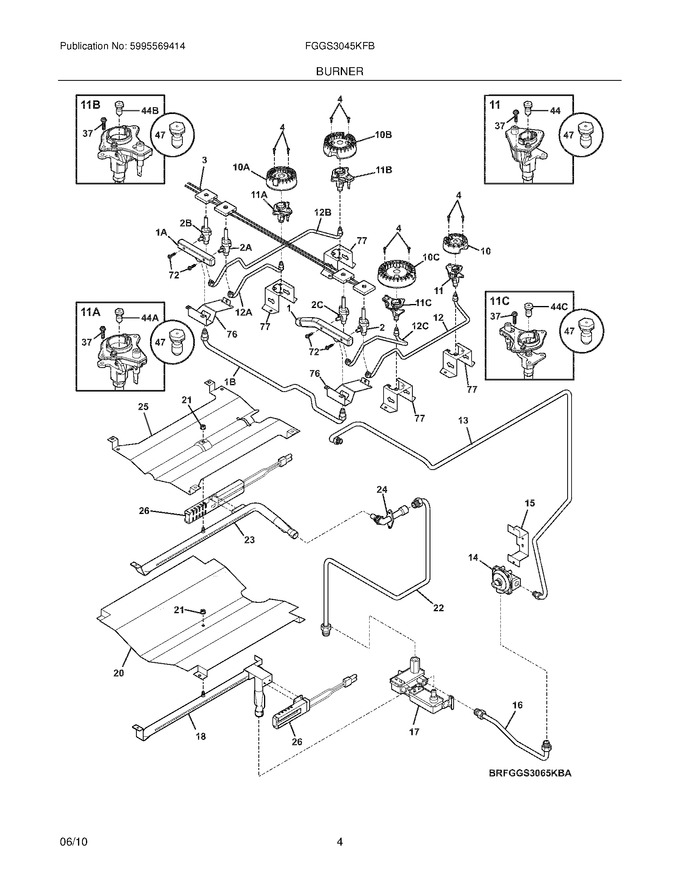

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
15	318262810		Bracket,regulator		Appelez-nous	-
20	318290400		Baffle,bake Burner				$ 120.65
21	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
25	316401301		Baffle,broil Burner				$ 173.57
37	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 12.13
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
76	318906703		Bracket,manifold ,(2)				$ 46.57
77	318920300		Bracket,burner Mtg ,(4)		Appelez-nous	-
10B	316438000		Burner,sealed ,12k				$ 67.81
F1	318913400		Manifold,right Side				$ 133.88
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10A	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10C	316438400		Burner,sealed ,16/17k			Immediately	$ 83.42
F11	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11A	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
F11B	316540702		Ignitor/orifice Assy.,top Burner ,12k ,w/holder			Immediately	$ 12.85
F11C	316543203		Ignitor/orifice Assy.,top Burner ,17k ,w/holder				$ 12.20
F12	318916800		Tube,burner Supply ,rh Rear				$ 110.09
F12A	318916500		Tube,burner Supply ,lh Front				$ 47.78
F12B	318916600		Tube,burner Supply ,lh Rear		Appelez-nous	-
F12C	318916700		Tube,burner Supply ,rh Front				$ 51.74
F13	318913600		Tube,rgltr To Manf				$ 140.23
F14	316091711		Regulator,pressure   (Replaces: 316416705)			Immediately	$ 90.03
F16	318289500		Tube,regulator Valve				$ 75.84
F17	316404901		Valve,safety				$ 365.72
F18	318292200		Burner,oven ,18000				$ 109.35
F1A	318907200		Manifold,pipe ,lh				$ 115.03
F1B	318913500		Tube,connection ,manifold				$ 106.52
F2	318915700		Valve,top Burner ,5k				$ 69.04
F22	318305203		Tube,broil Supply		Appelez-nous	-
F23	318292300		Burner,broil ,14000				$ 99.75
F24	316409703		Elbow,mixer				$ 138.70
F26	5303935066		Ignitor,oven Burner   (Replaces: 318177710)			Immediately	$ 59.58
F2A	318915702		Valve,top Burner ,9.5k   (Replaces: 318915701)				$ 72.87
F2B	318915702		Valve,top Burner ,12k				$ 72.87
F2C	318915704		Valve,top Burner ,16k/17k				$ 92.45
F3	318232659		Wiring Harness,w/igntr Switch				$ 100.59
F44	316527504		Orifice,top Burner ,5k				$ 22.68
F44A	316527500		Orifice,top Burner ,9.5k				$ 21.40
F44B	316527502		Orifice,top Burner ,12k				$ 22.68
F44C	316527509		Orifice,top Burner ,17k				$ 19.85
F47	318565400		Conversion Kit,lp				$ 90.04
FNI	318268600		Harness,wiring ,valve				$ 56.32
FNI	318199776		Wiring Harness,ignitor				$ 54.60
NI	5303325980		Screw,10-32 X 0.437				$ 12.76
NI	5304463705		Screw,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	5303300195		Screw,10-32 X 0.375 ,(2)		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
