SELECT A DIAGRAM

No Diagram Image Available
01 - Miscellaeous Information

No Diagram Image Available
02 - Controls & Basepan Assy

Diagram for 03 - Splash Shield & Blower Assy
03 - Splash Shield & Blower Assy

No Diagram Image Available
04 - Electrical Components

No Diagram Image Available
05 - Light Assy

No Diagram Image Available
06 - Chassis Assy

No Diagram Image Available
07 - Oven Cavity Assy

No Diagram Image Available
08 - Door Assy


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
011 12126601 Shield-grease Appelez-nous -
012 12271103 Brkt, Blower Mtg Appelez-nous -
021 R9900114 Window-oven Light Includes 4 Screws Special Order $ 18.60

022 12138105 Motor-blower Appelez-nous -
031 12135804 Filter Appelez-nous -
032 12138201 Wheel-blower Special Order $ 10.37

041 12538604 Harness, Oven Appelez-nous -
042 12138302 Scroll-blower Appelez-nous -
051 WP489349 Screw-sm   (Replaces: M0216515) In-Stock Immediately $ 7.09

052 WP3400094 Screw-tf   (Replaces: M0253942) Special Order $ 7.14

061 12525701 Barrier, Air Appelez-nous -
062 M0216517 Screw-sm Appelez-nous -
071 12134101 Divider-flow Appelez-nous -
072 A3030302 Gasket Appelez-nous -
081 A3030302 Gasket Appelez-nous -
082 B5706704 Fan Blade Special Order $ 8.23

091 M0216517 Screw-sm Appelez-nous -
092 M0118901 Clip-push Appelez-nous -
102 12QBP0508 Triac   (Replaces: R0157373) Special Order $ 27.14

112 10172901Q Snubber Assembly Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

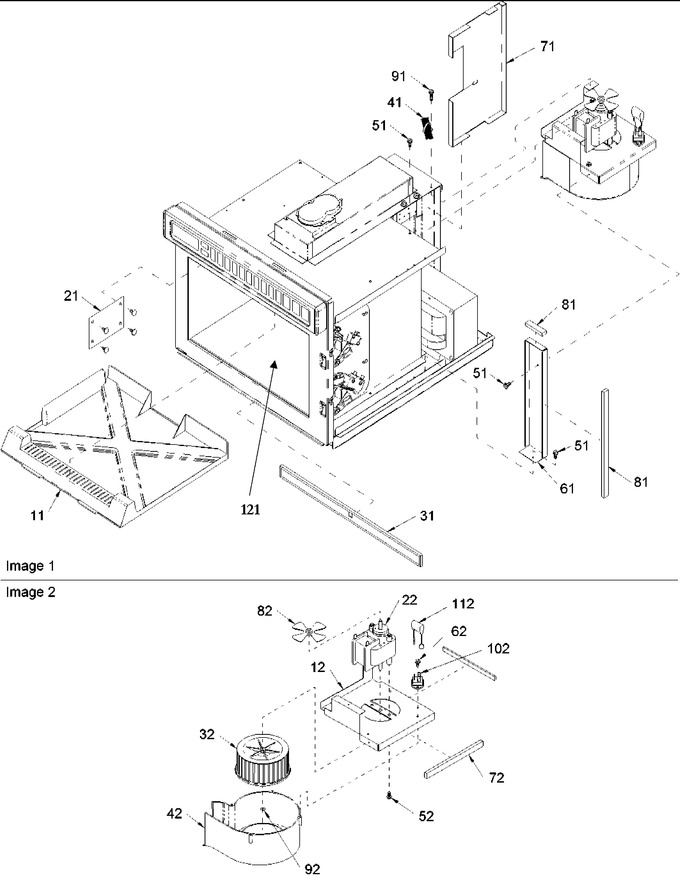

Diagram for DEC11E (BOM P1325203M)
